What is Router

Router Technology

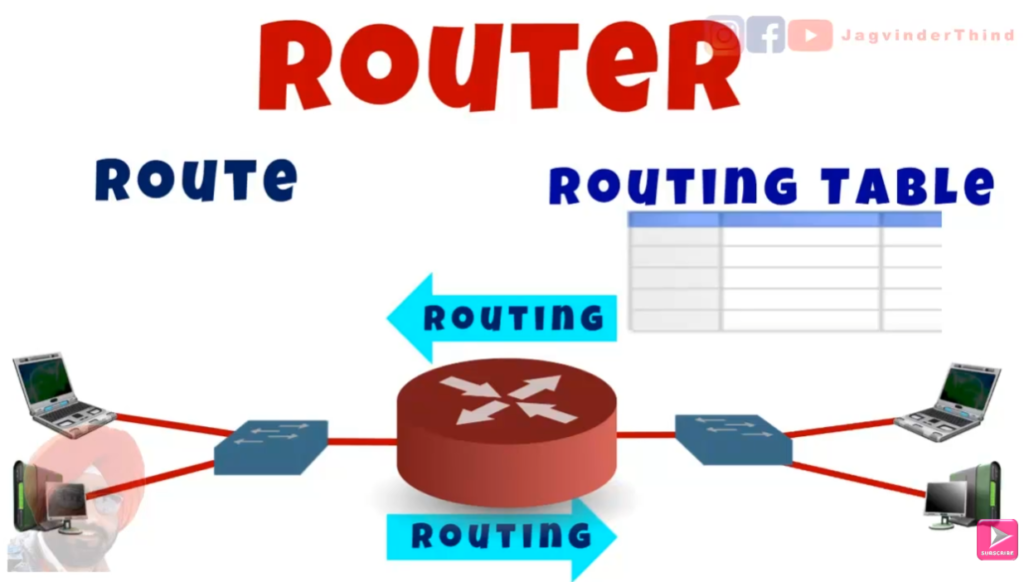

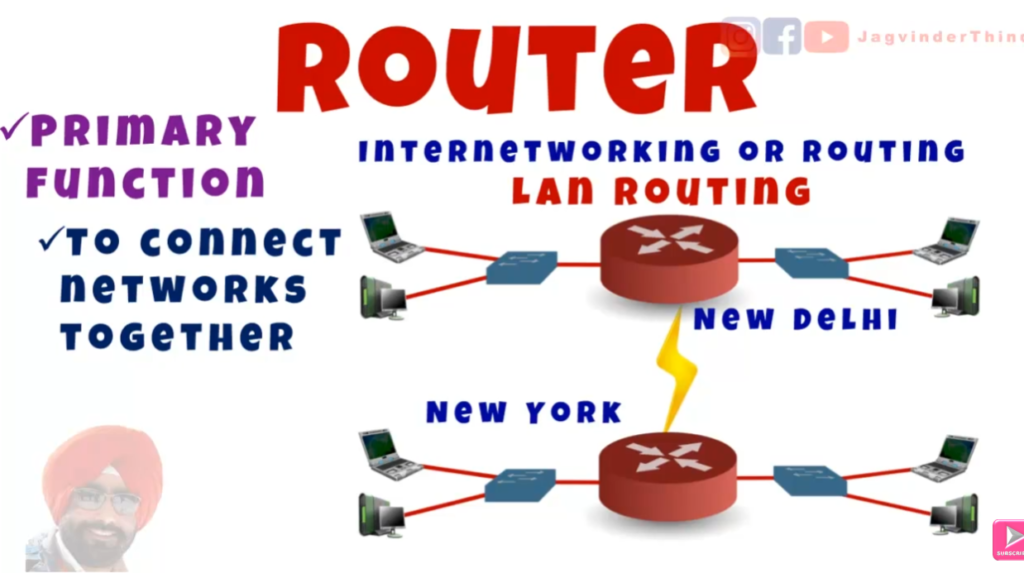

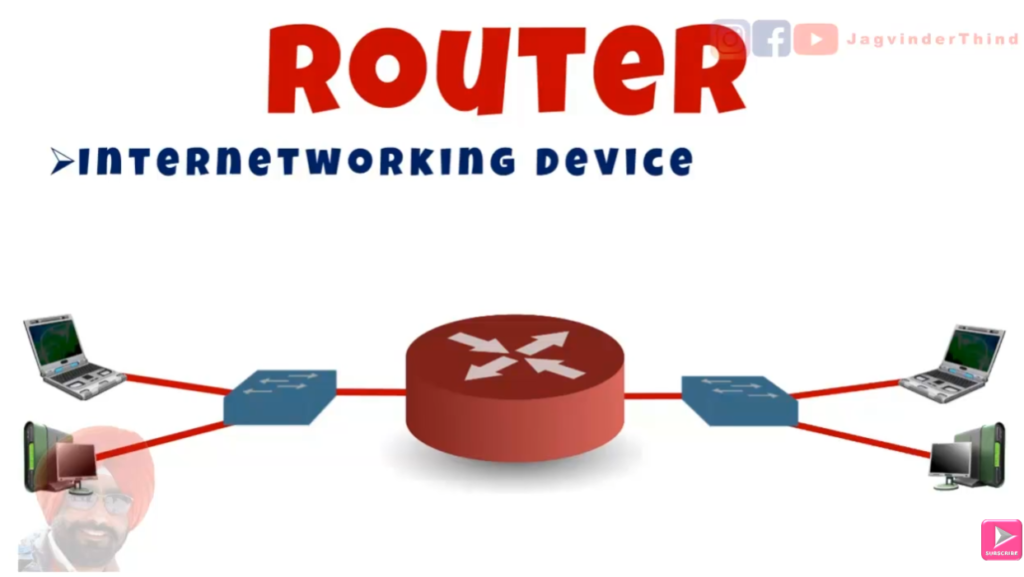

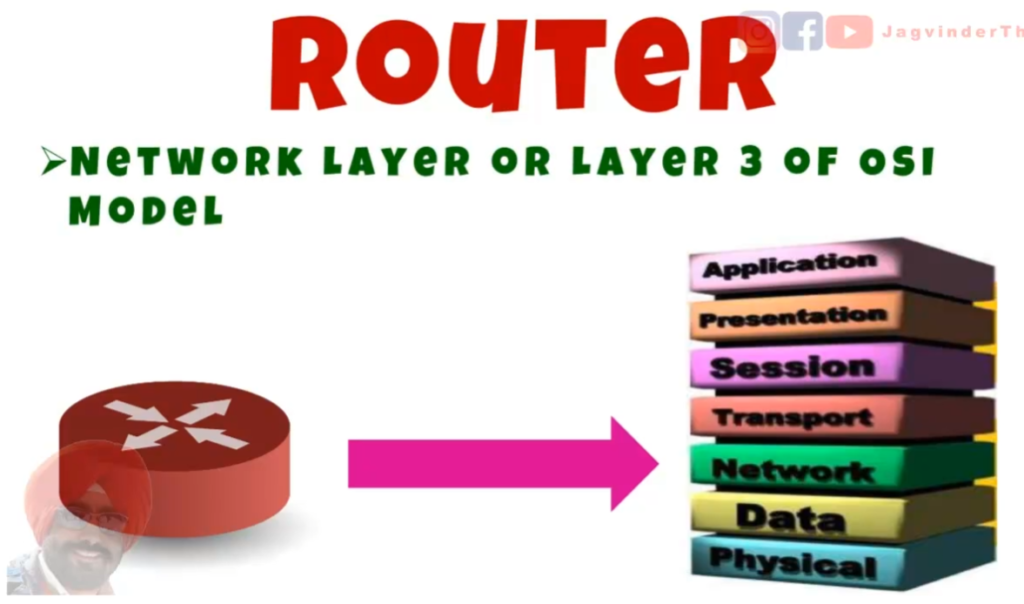

A router is a networking device used to connect multiple networks and forward data from one network to another. It works at Layer 3 (Network Layer) of the OSI model and makes decisions based on IP addresses. The main function of a router is to determine the best path for data packets to reach their destination using a routing table.

In simple terms, when you send data (like opening a website), your device sends packets to the router. The router checks the destination IP address and decides where to send the data next. It may send the data to another router or directly to the destination network. This process is called routing.

Routers maintain a routing table, which contains information about different networks and the best paths to reach them. This table can be created manually (static routing) or automatically using routing protocols like OSPF, RIP, or EIGRP (dynamic routing). Based on this table, the router selects the most efficient route for data transmission.

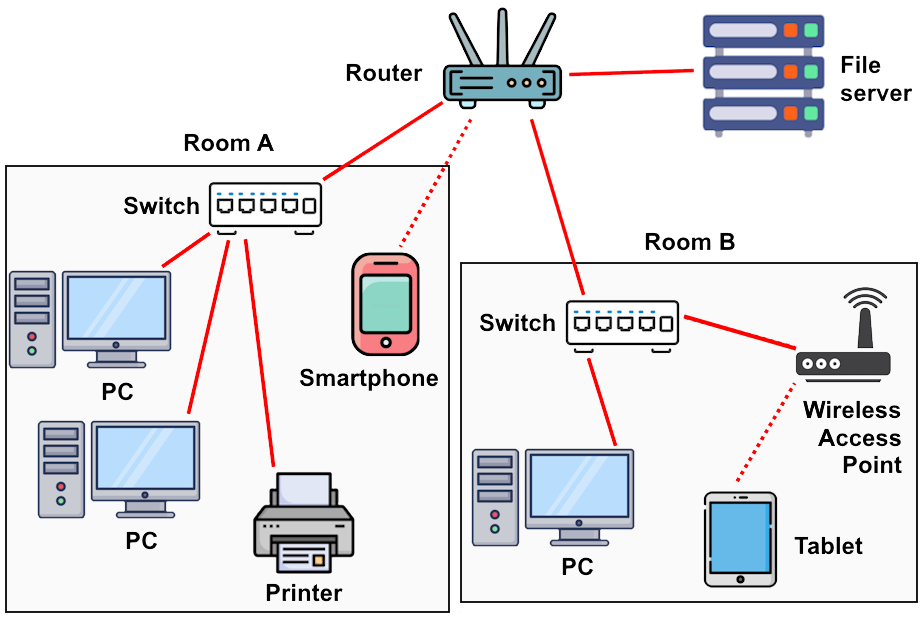

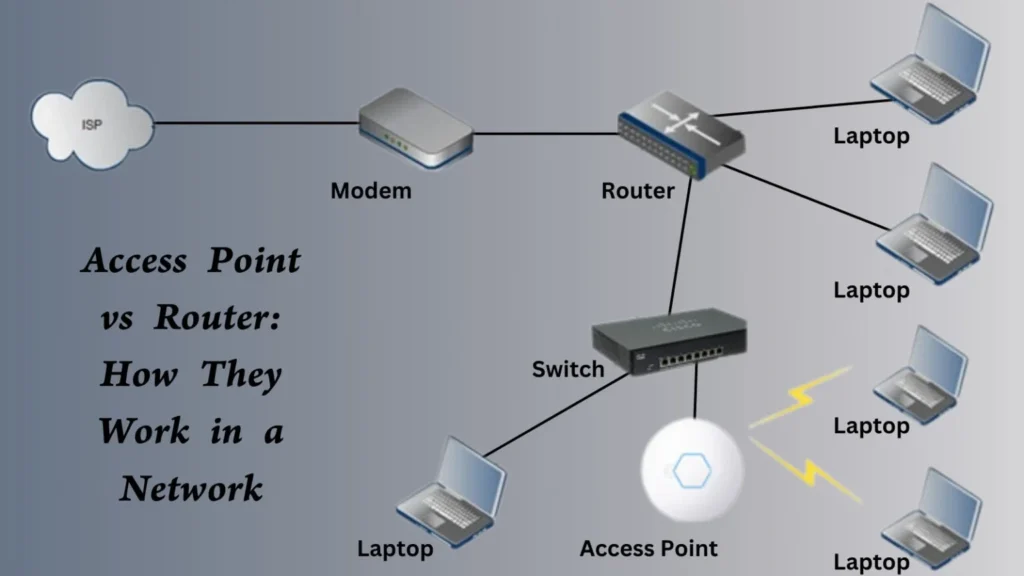

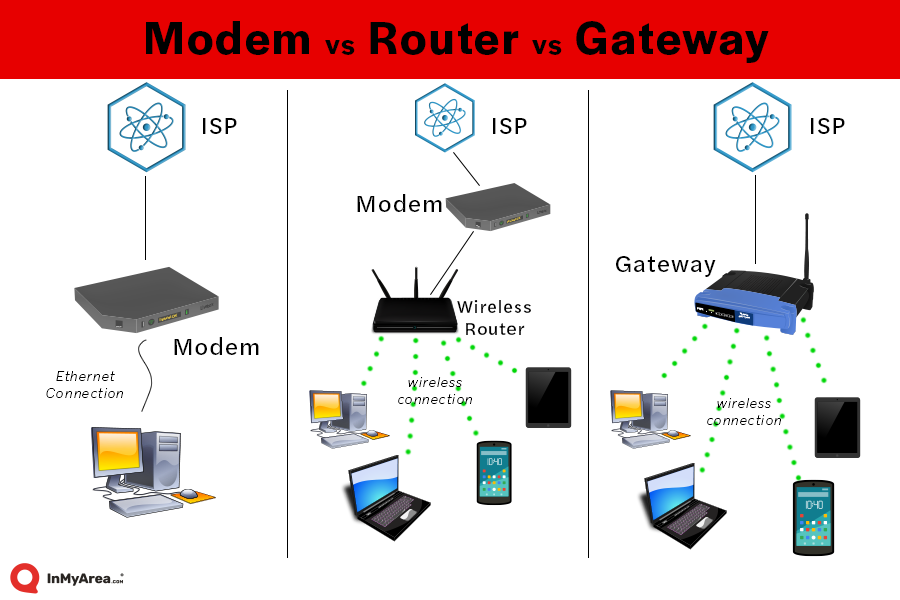

For example, in a home network, your Wi-Fi router connects your local devices (like laptops and smartphones) to the internet. When you request a webpage, the router sends your request to your Internet Service Provider (ISP) and then forwards the response back to your device.

In summary, a router is an intelligent device that directs network traffic, ensures efficient data delivery, and connects different networks together.

Type of Router

1. Wired Router

A wired router connects devices using physical cables like Ethernet. It provides stable and fast connectivity, which is why it is commonly used in offices and data centers. In this type, each device must be connected through a cable, making it less flexible but more secure and reliable.

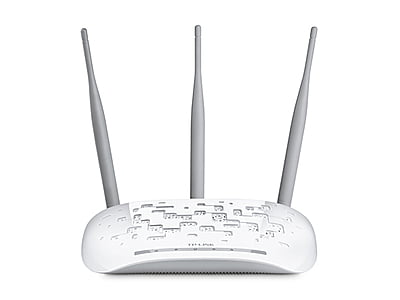

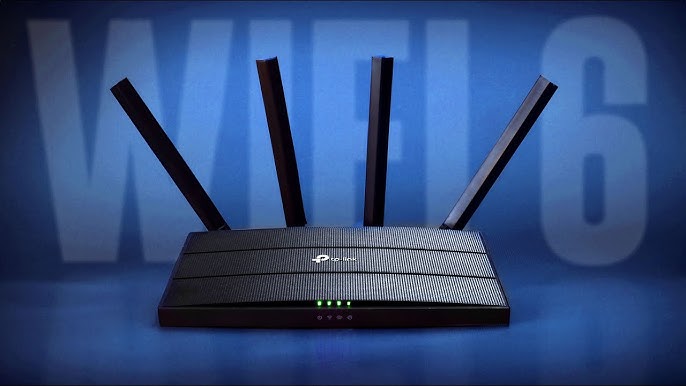

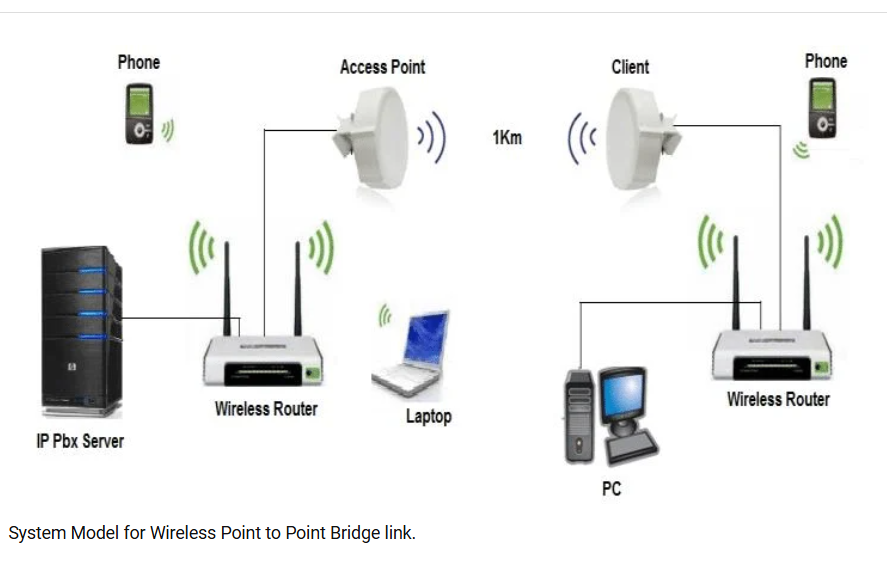

2. Wireless Router

A wireless router allows devices to connect without cables using Wi-Fi. It is the most commonly used router in homes and small businesses. It combines the functions of a router and an access point, enabling smartphones, laptops, and smart devices to access the internet easily.

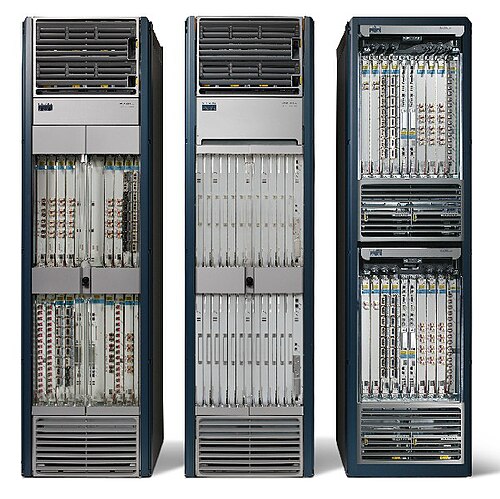

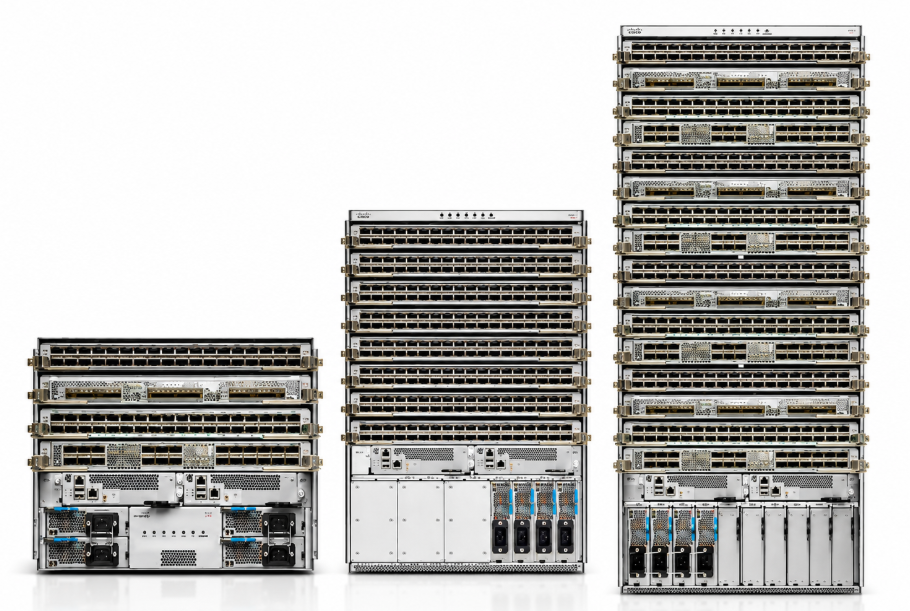

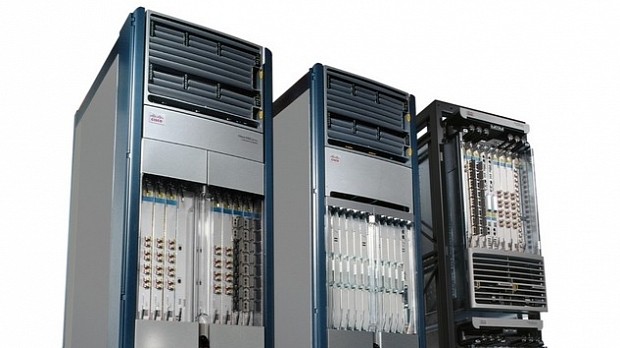

3. Core Router

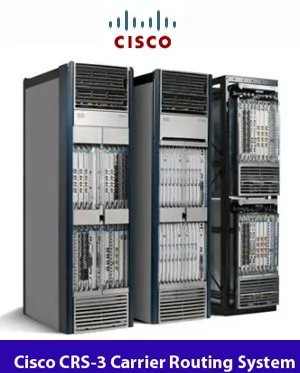

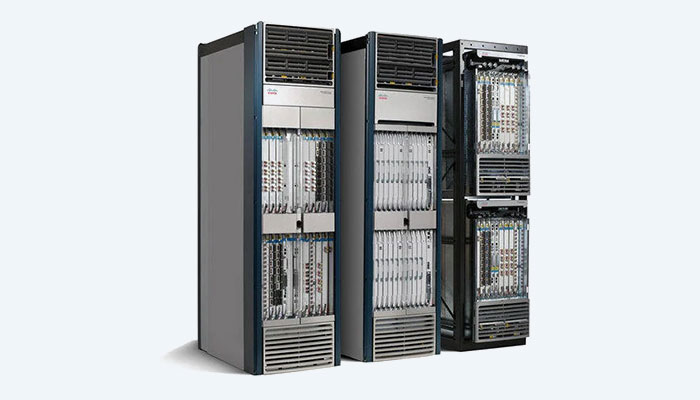

A core router is used in the backbone of large networks, such as by Internet Service Providers (ISPs). It is designed to handle very high traffic and speed. These routers do not connect end users directly but manage data transmission within large networks.

4. Edge Router

An edge router is placed at the boundary (edge) of a network. It connects an internal network to external networks like the internet. It often includes security features such as firewalls and filtering to protect the network.

5. Virtual Router

A virtual router is a software-based router that runs on a virtual machine or cloud environment. Instead of physical hardware, it performs routing functions using software, making it flexible and scalable for modern networks.

6. Broadband Router

A broadband router is used for internet connections like DSL, cable, or fiber. It connects home or office networks to the ISP and often includes built-in Wi-Fi and basic security features.

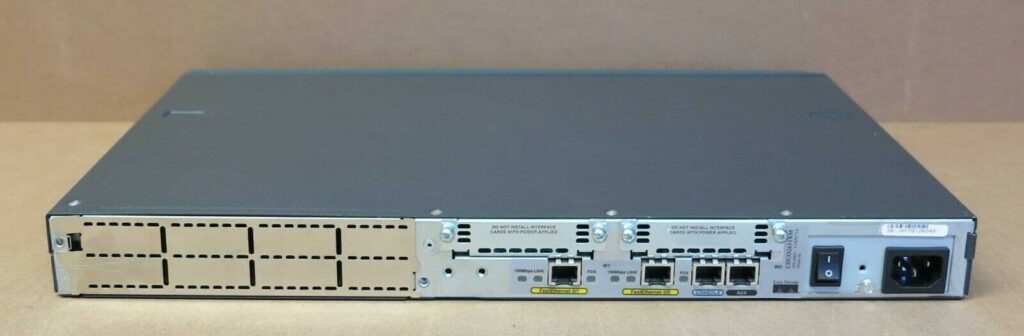

7. Enterprise Router

An enterprise router is designed for large organizations. It supports advanced routing protocols, high security, and handles large network traffic efficiently. These routers are powerful and expensive compared to home routers.

Types of Routers in Shorts

Broadband Routers: Connect computers to the Internet and share the connection.
Wireless Routers: Create Wi-Fi networks in homes or offices.
Wired Routers: Connect multiple devices via Ethernet cables, common in schools and offices.
Edge Routers: Located at network boundaries, distributing packets to and from ISPs.
Core Routers: Operate within networks, handling heavy data traffic.
Virtual Routers: Software-based routers implemented on virtual machines for flexibility and scalability.
Portable Routers: Small devices creating private Wi-Fi for mobility.

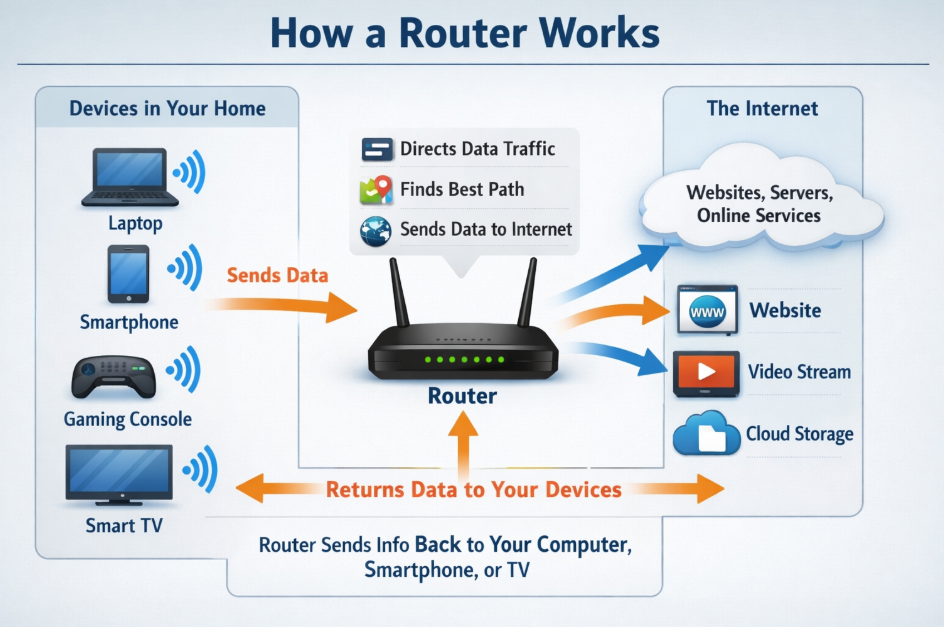

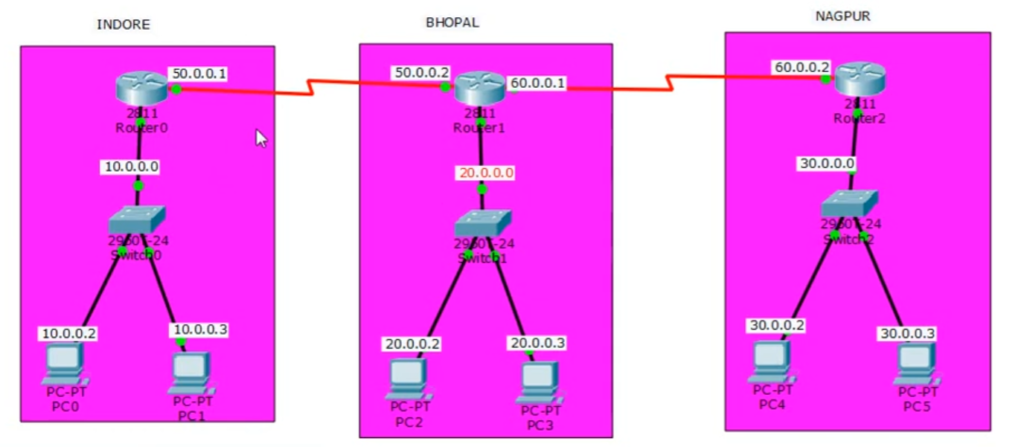

How Does a Router Work

A router works by receiving data packets from one network, analyzing their destination, and forwarding them to the correct network using the best possible path. It acts like a traffic manager that directs data efficiently between devices and networks.

Step 1: Receiving Data Packets

When a device (like a computer or smartphone) sends data, it is broken into small units called packets. These packets are sent to the router. Each packet contains important information such as the source IP address and destination IP address.

Step 2: Checking the Destination IP

The router reads the destination IP address in the packet header. This helps the router understand where the data needs to go—whether it is within the same network or outside (like on the internet).

Step 3: Looking at the Routing Table

The router then checks its routing table, which is like a map of networks. This table tells the router the best path to reach a particular destination.

If the destination is known → it forwards the packet accordingly

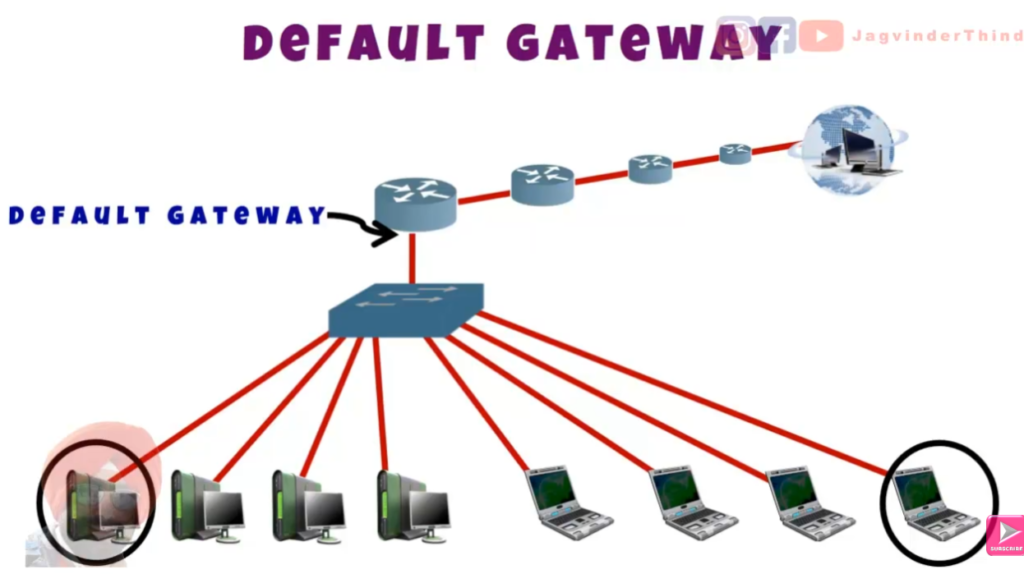

If not → it may use a default route

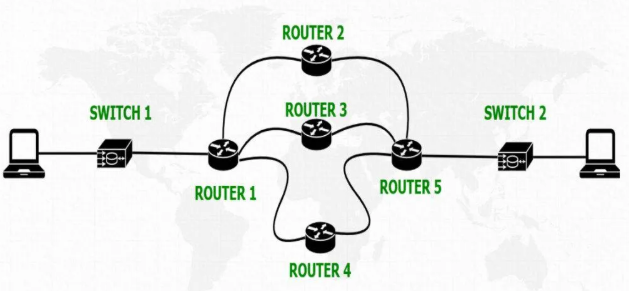

Step 4: Selecting the Best Path

Using routing protocols (like OSPF, RIP, EIGRP), the router chooses the most efficient path based on factors such as distance, cost, or speed. This ensures fast and reliable data delivery.

Step 5: Forwarding the Packet

After selecting the path, the router forwards the packet to the next device (another router or the final destination). This process continues until the packet reaches its destination.

Step 6: Delivery to Destination

Finally, the packet reaches the target device, where all packets are reassembled into the original data (like a webpage, video, or file).

Example

Suppose you open a website:

Your device sends a request to the router
The router forwards it to your ISP
The data travels across multiple routers on the internet
The website server responds
The router sends the response back to your device

Functions of a Router

1. Packet Forwarding

The primary function of a router is packet forwarding. It receives data packets from one network and sends them to another network. The router reads the destination IP address and forwards the packet toward its destination.

2. Path Selection (Routing)

A router determines the best path for data to travel. It uses routing algorithms and protocols (like OSPF, RIP, EIGRP) to select the most efficient route based on metrics such as cost, distance, or bandwidth.

3. Routing Table Maintenance

Routers maintain a routing table, which stores information about networks and paths. This table is updated either manually (static routing) or dynamically through routing protocols, helping the router make correct forwarding decisions.

4. Network Address Translation (NAT)

Routers perform NAT, which allows multiple devices in a private network to share a single public IP address. This helps conserve IP addresses and adds a layer of security by hiding internal IP addresses.

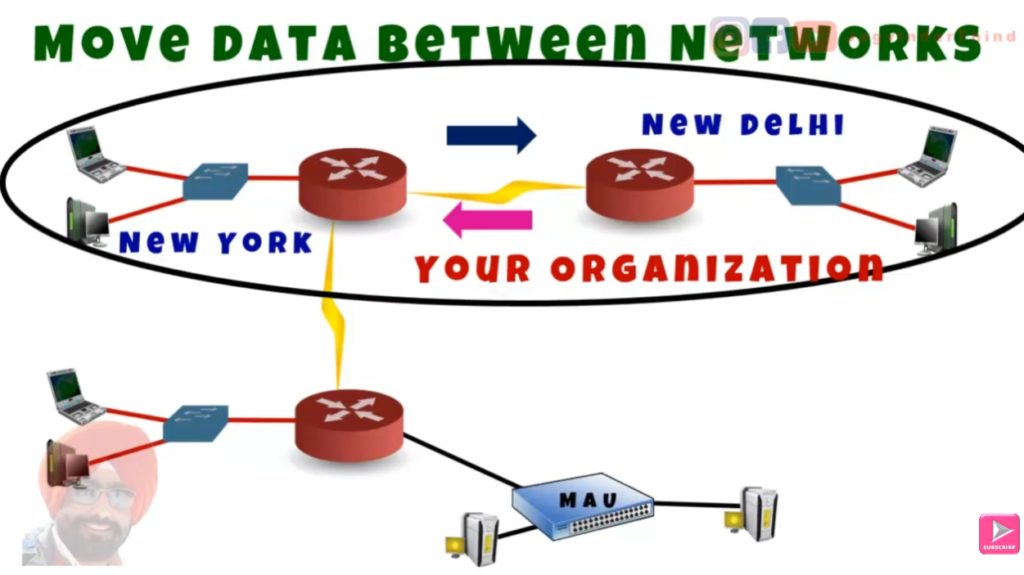

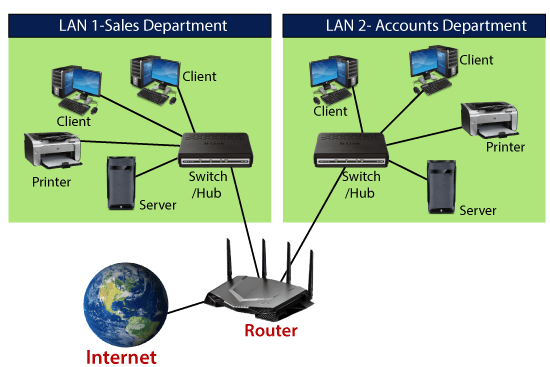

5. Interconnecting Networks

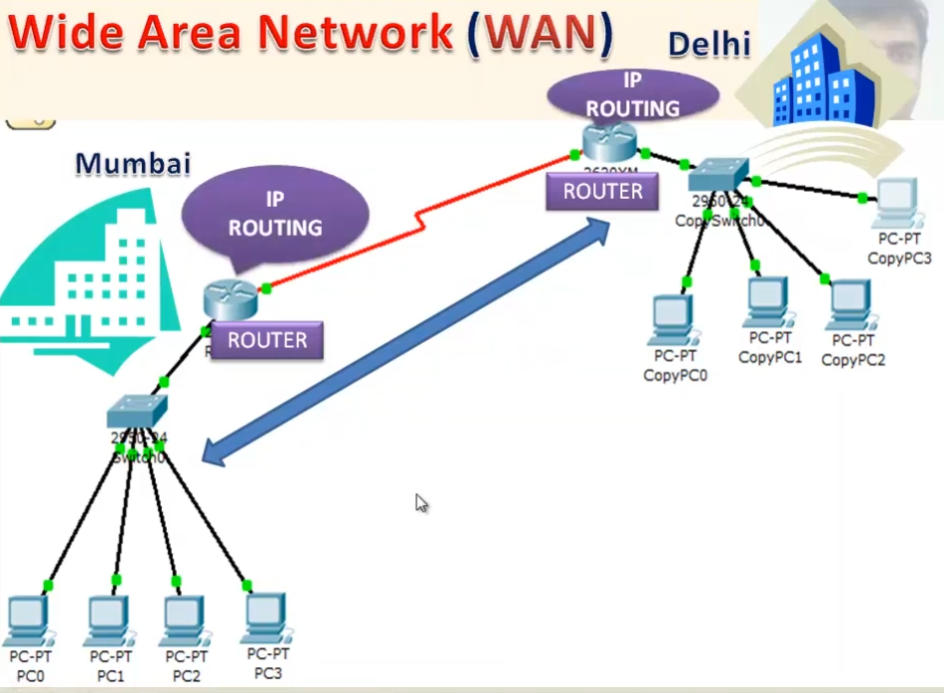

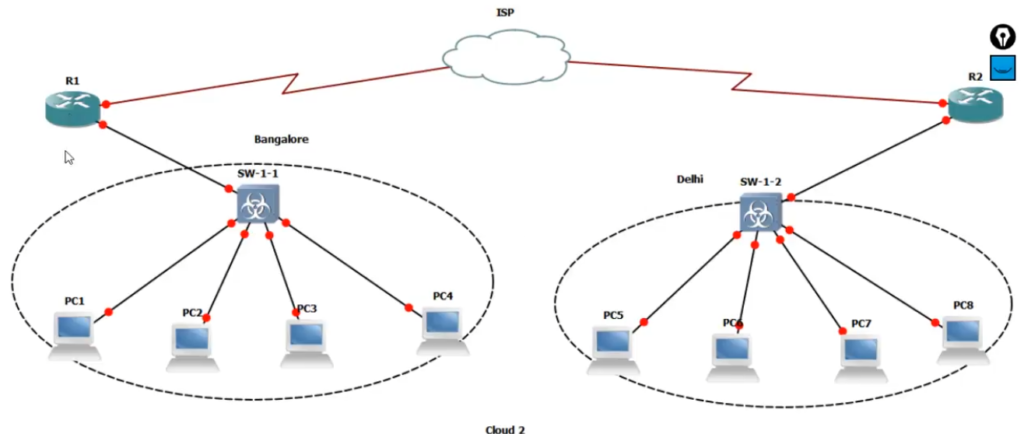

Routers connect different networks together, such as a local network (LAN) to a wide area network (WAN) like the internet. This enables communication between devices on different networks.

6. Traffic Management

Routers manage network traffic by controlling data flow. They can prioritize certain types of traffic (like voice or video) to ensure better performance using techniques like Quality of Service (QoS).

7. Security Functions

Routers provide basic security features such as packet filtering, access control lists (ACLs), and sometimes firewall functionality. These features help protect the network from unauthorized access.

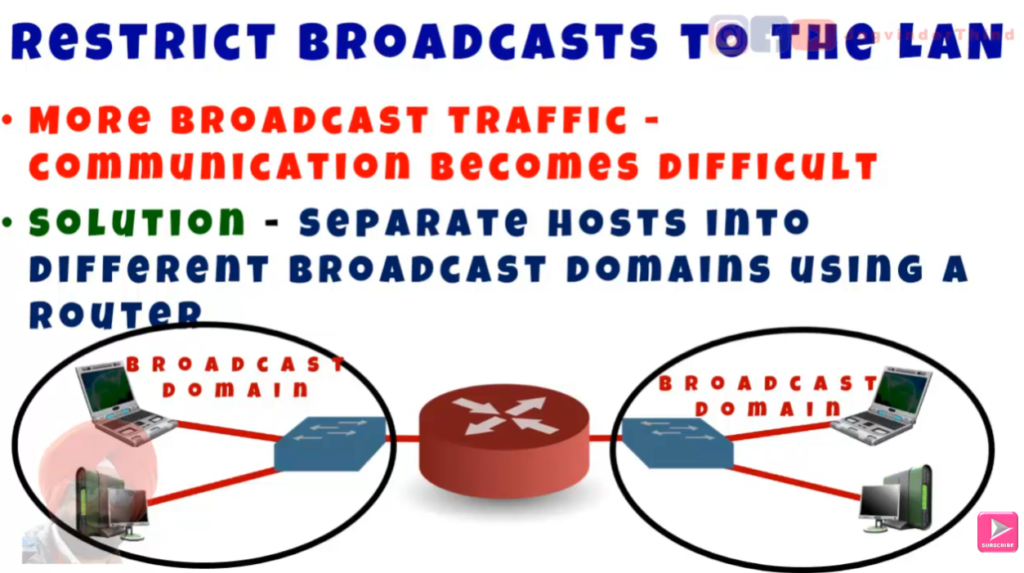

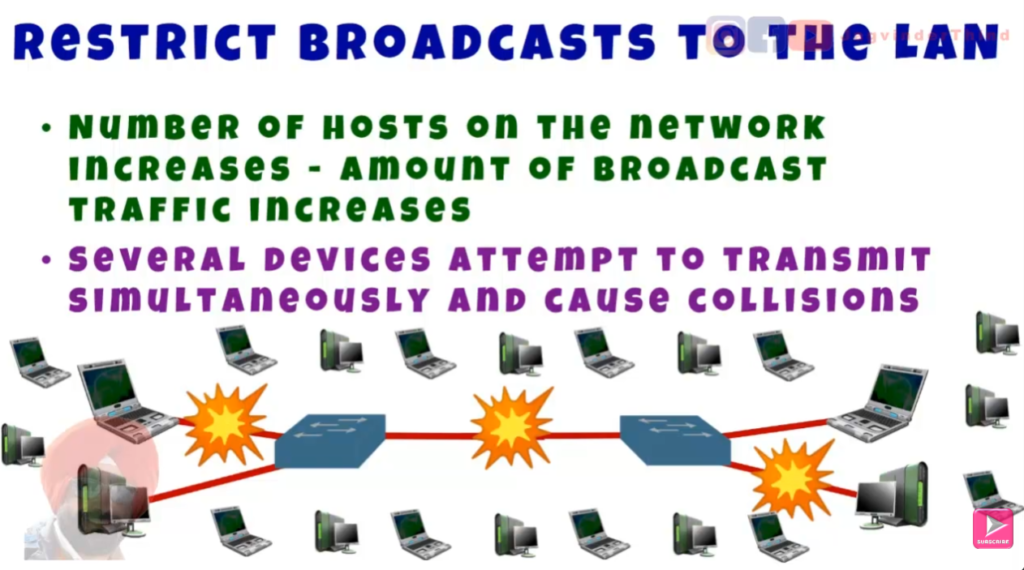

8. Broadcasting Control

Routers limit broadcast traffic. Unlike switches, routers do not forward broadcast messages by default, which helps reduce unnecessary network traffic and improves performance.

Summary

In short, the main functions of a router are:

Forwarding data packets
Choosing the best path
Maintaining routing information
Connecting networks
Providing security and traffic control

Common Routing Protocols

Common routing protocols are used by routers to automatically learn network paths and decide the best route for data transmission. These protocols help routers exchange information and update their routing tables dynamically.

1. RIP (Routing Information Protocol)

RIP is one of the oldest routing protocols. It uses hop count (number of routers) as a metric to choose the best path. The maximum hop count is 15, so it is suitable only for small networks. RIP is simple to configure but slower and less efficient in large networks.

2. OSPF (Open Shortest Path First)

OSPF is a widely used link-state routing protocol. It calculates the shortest path using a cost metric based on bandwidth. OSPF is fast, efficient, and supports large networks by dividing them into areas. It quickly adapts to network changes.

3. EIGRP (Enhanced Interior Gateway Routing Protocol)

EIGRP is an advanced routing protocol developed by Cisco. It uses multiple metrics such as bandwidth, delay, reliability, and load to select the best path. It is faster and more efficient than RIP and works well in medium to large networks.

4. BGP (Border Gateway Protocol)

BGP is used for routing between different organizations on the internet (external networks). It is known as an Exterior Gateway Protocol (EGP). BGP selects the best path based on policies, rules, and network attributes rather than just distance. It is the backbone of the internet.

5. IS-IS (Intermediate System to Intermediate System)

IS-IS is another link-state routing protocol similar to OSPF. It is mainly used by large service providers and ISPs. It is highly scalable and works efficiently in large networks.

Summary Chart

Protocol	Type	Metric Used	Suitable For
RIP	Distance Vector	Hop Count	Small networks
OSPF	Link-State	Cost (Bandwidth)	Medium to large networks
EIGRP	Hybrid	Multiple metrics	Medium to large networks
BGP	Path Vector (EGP)	Policy-based	Internet (large-scale)
IS-IS	Link-State	Cost	Large ISP networks

Final Note

In short, routing protocols help routers learn routes automatically, choose the best path, and adapt to network changes.

Small network → RIP
Enterprise → OSPF / EIGRP
Internet → BGP

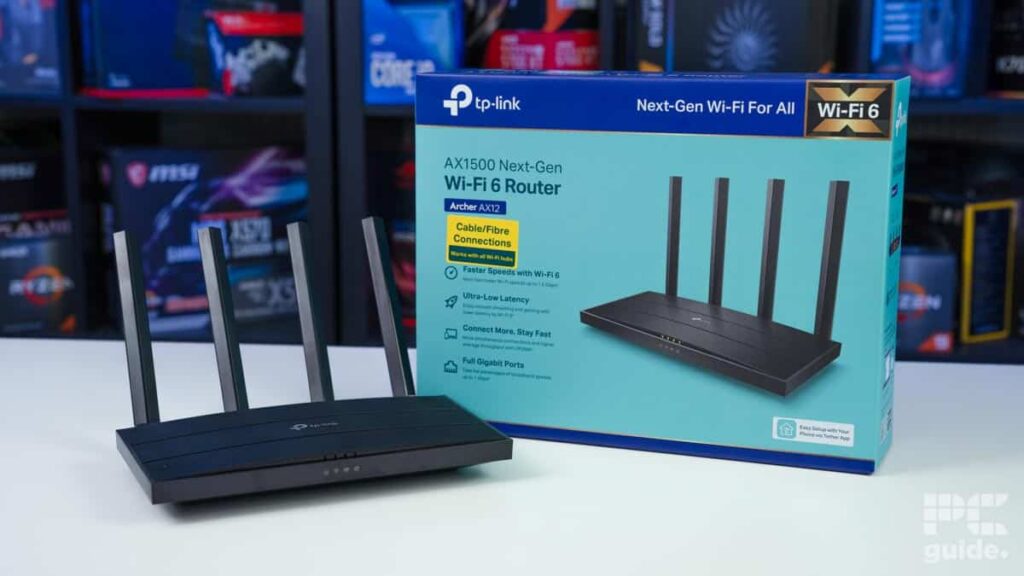

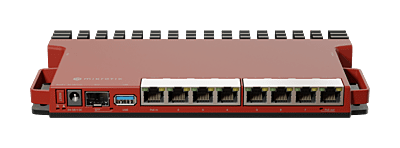

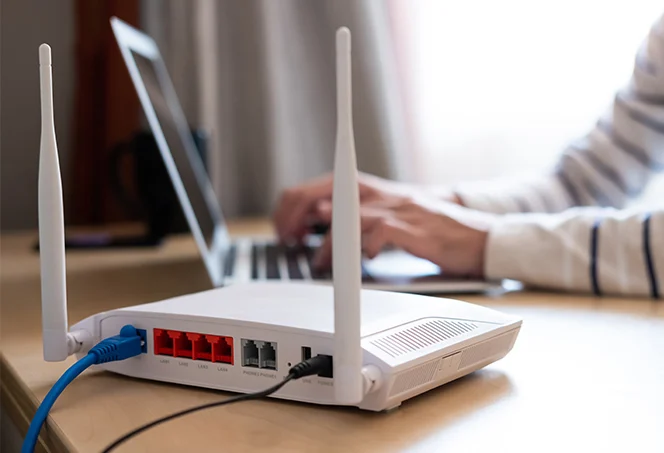

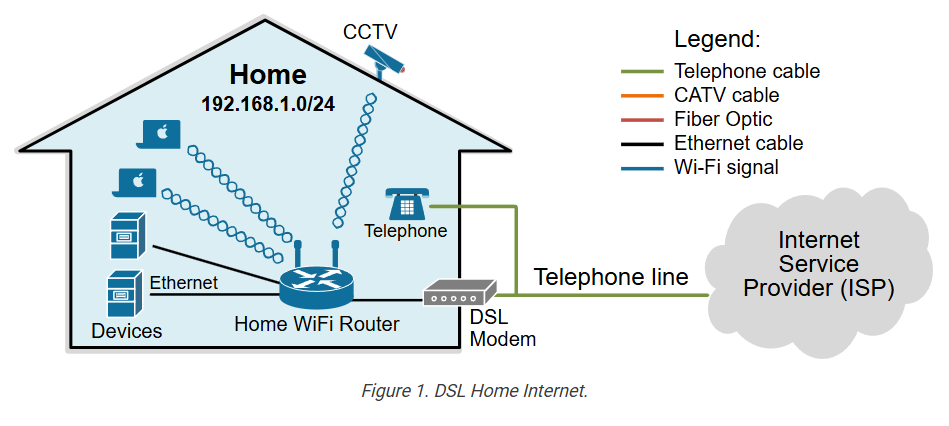

Normal Home Router

A normal home router model is a device used in houses to connect multiple devices (like mobiles, laptops, smart TVs) to the internet using both Wi-Fi and Ethernet cables. It is usually a wireless broadband router that combines three main functions: router, switch, and wireless access point.

Common Home Router Models (Examples)

Here are some popular home router models used in homes:

TP-Link Archer C6 – A budget-friendly dual-band Wi-Fi router suitable for small to medium homes.

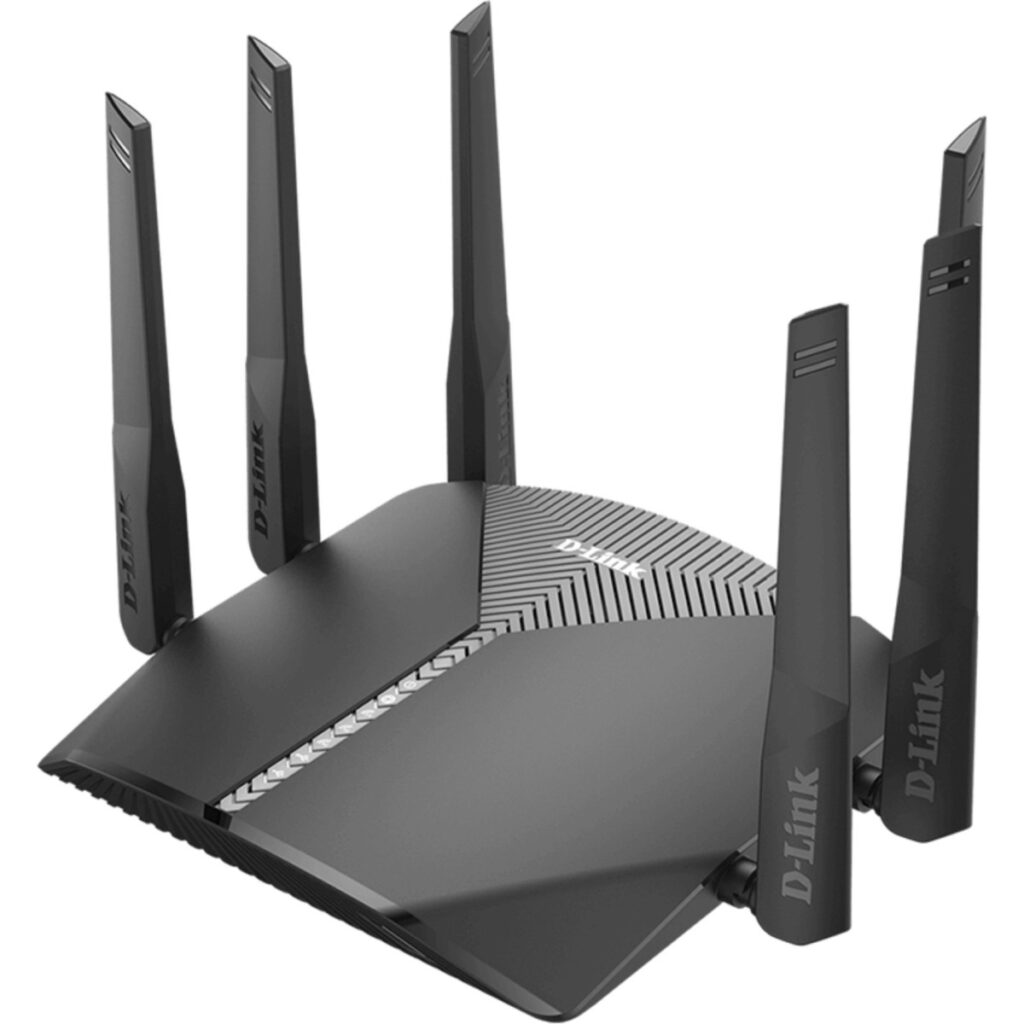

D-Link DIR-825 – Offers good speed and stability for daily internet use.
Netgear Nighthawk R7000 – A high-performance router ideal for gaming and streaming.
Tenda AC10 – Affordable router with decent speed for home users.
Asus RT-AC66U – Known for strong performance and advanced features.

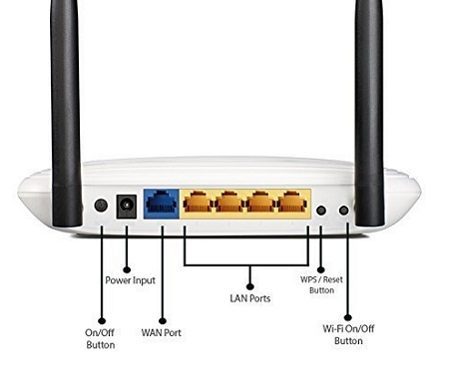

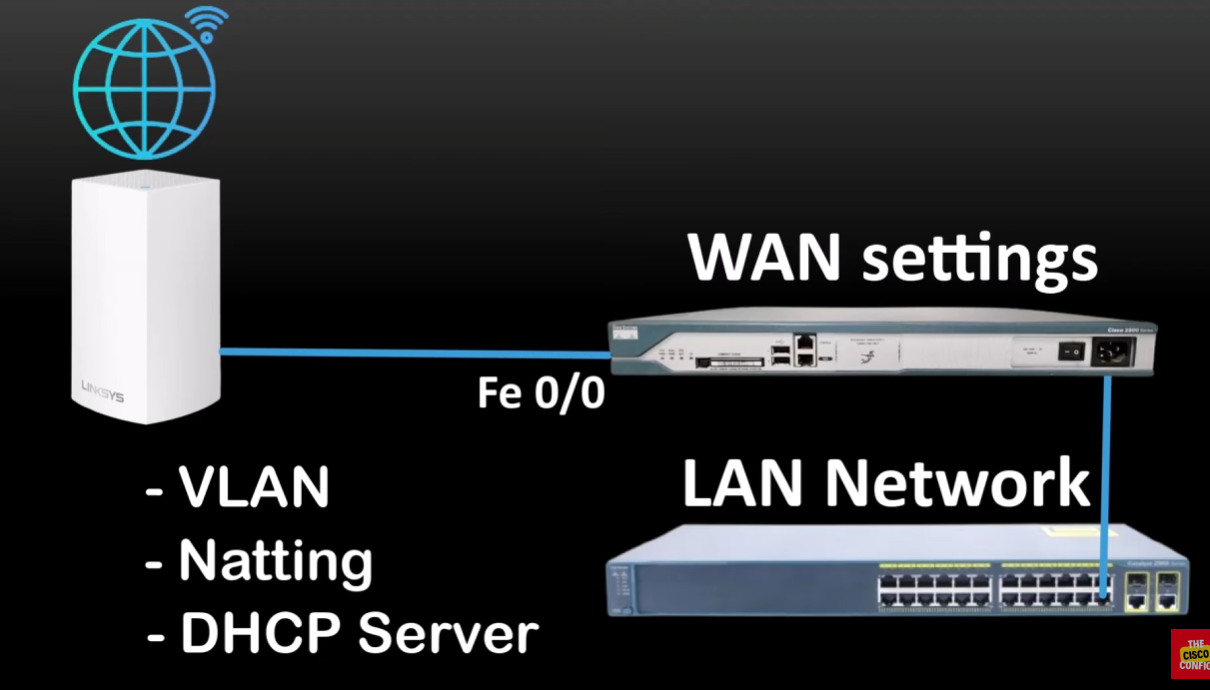

Features of a Normal Home Router

A typical home router includes:

Wi-Fi Connectivity – Allows wireless internet access
LAN Ports (Ethernet) – For wired connections
WAN Port – Connects to ISP modem
NAT (Network Address Translation) – Shares one internet connection
DHCP Server – Automatically assigns IP addresses
Basic Security – WPA2/WPA3 password protection

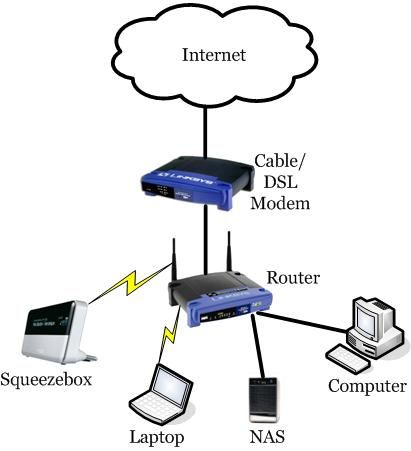

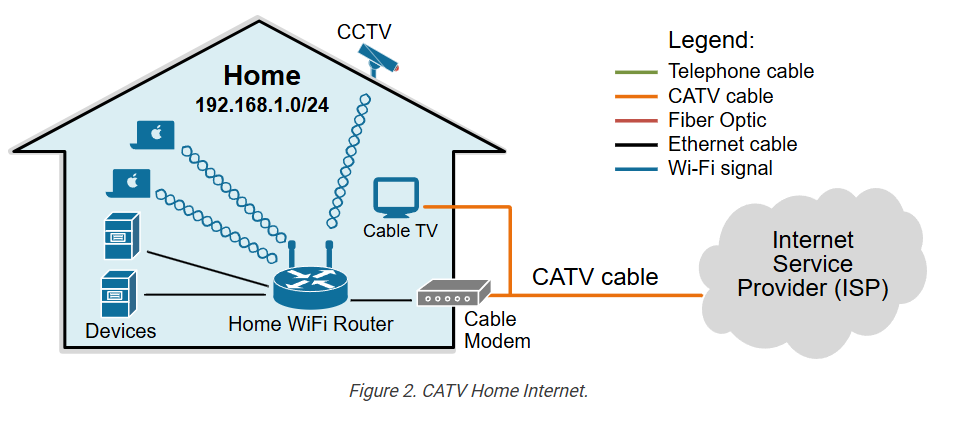

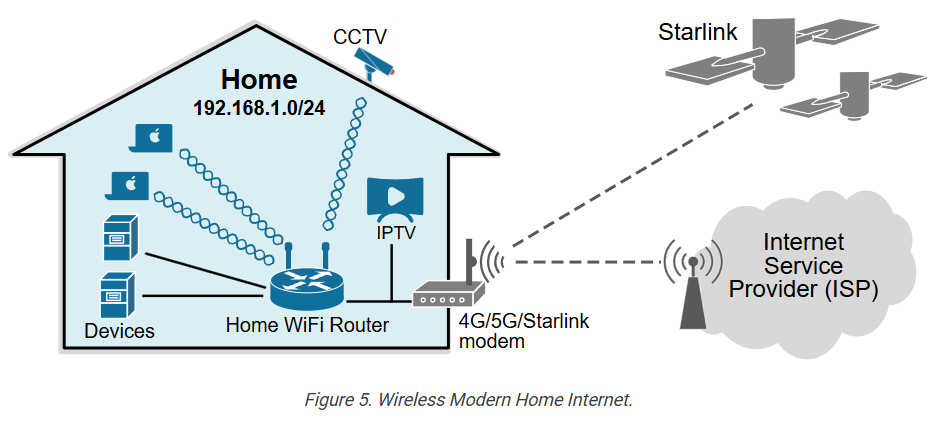

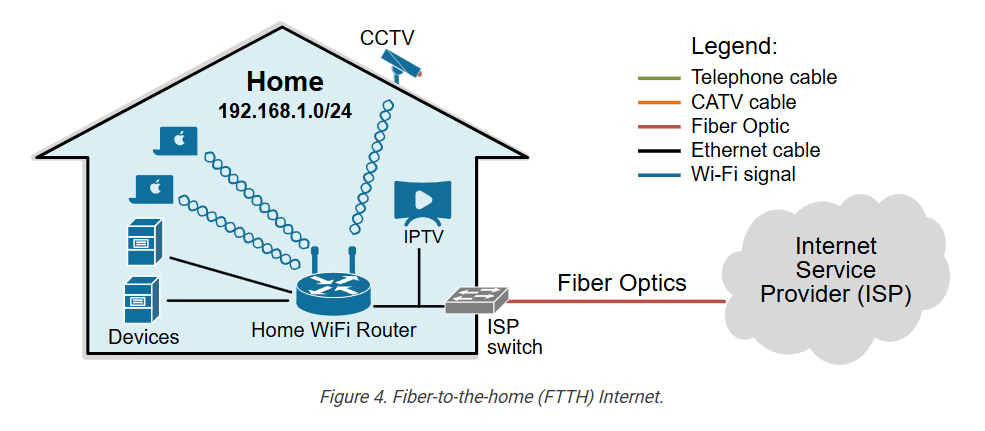

Simple Example

In your home:

Internet comes from ISP → goes to router
Router creates Wi-Fi network
Your phone, laptop connect → access internet

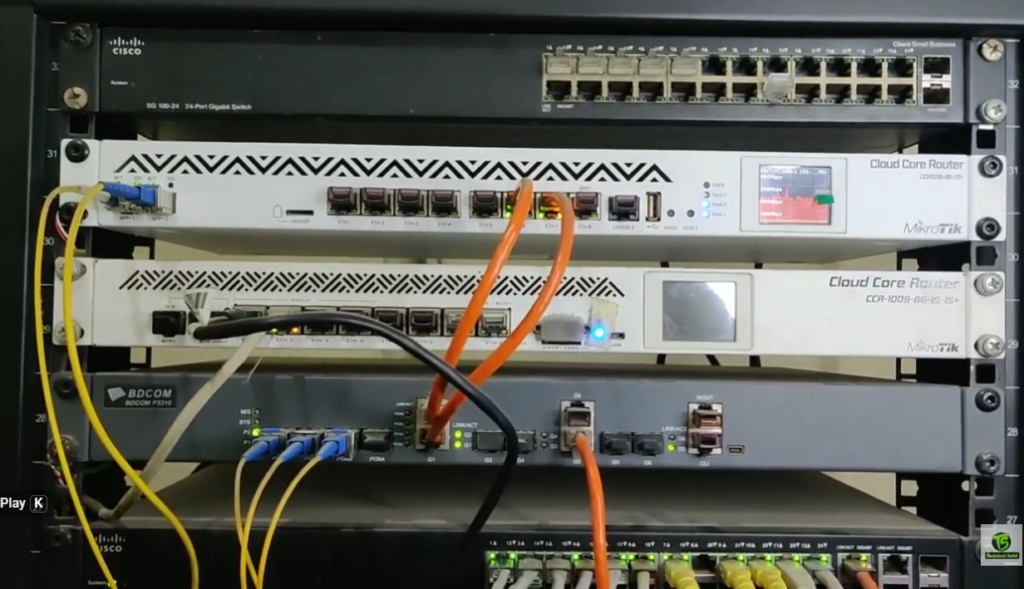

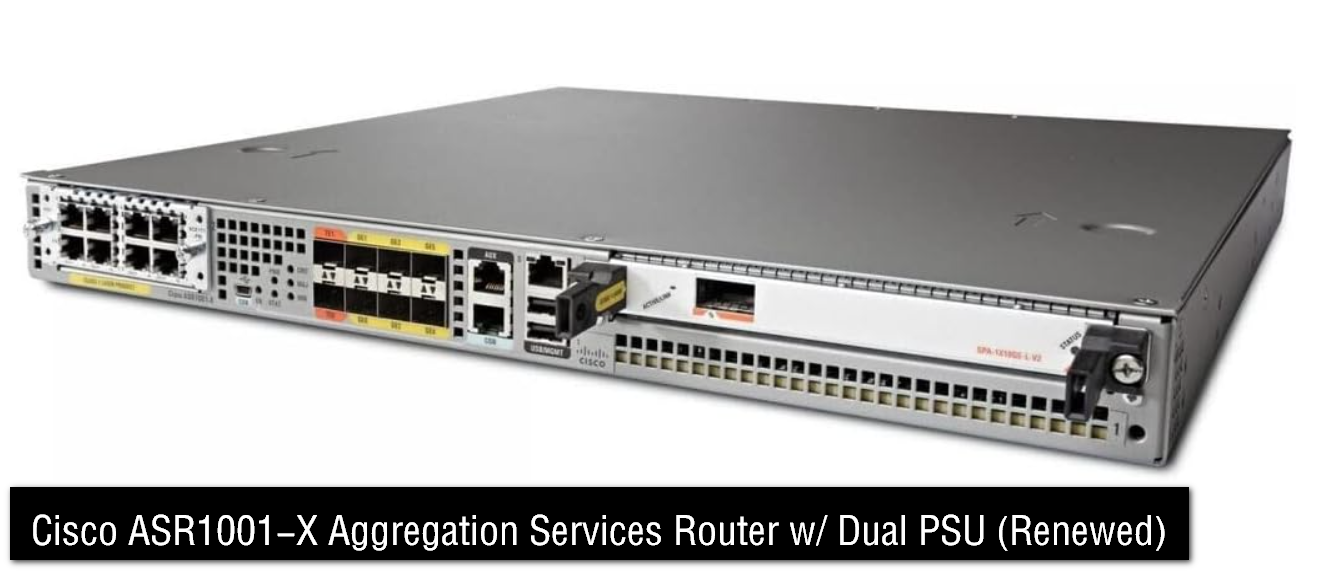

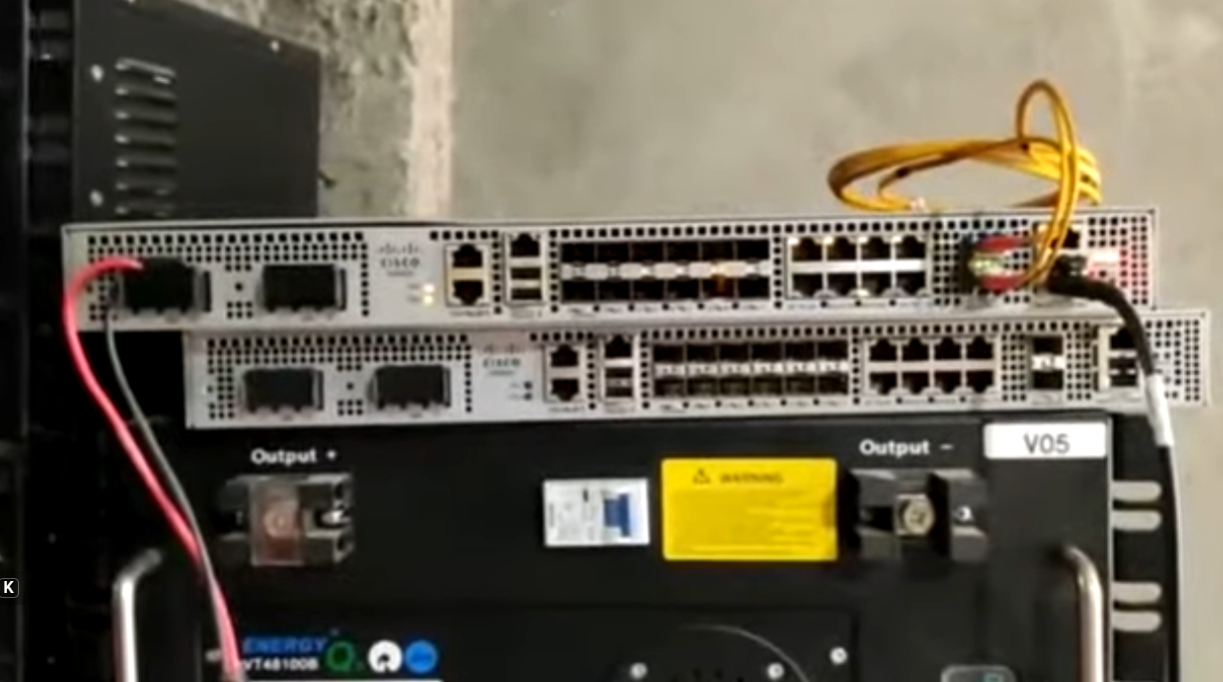

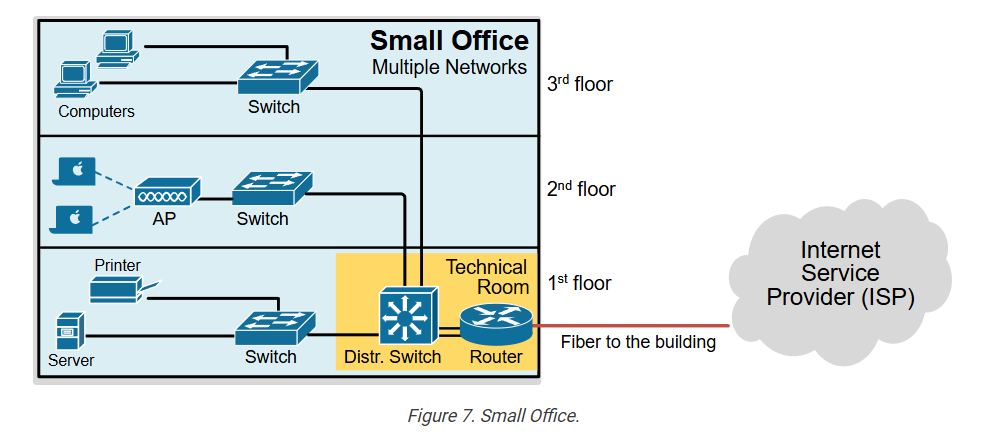

High-Performance Enterprise Router

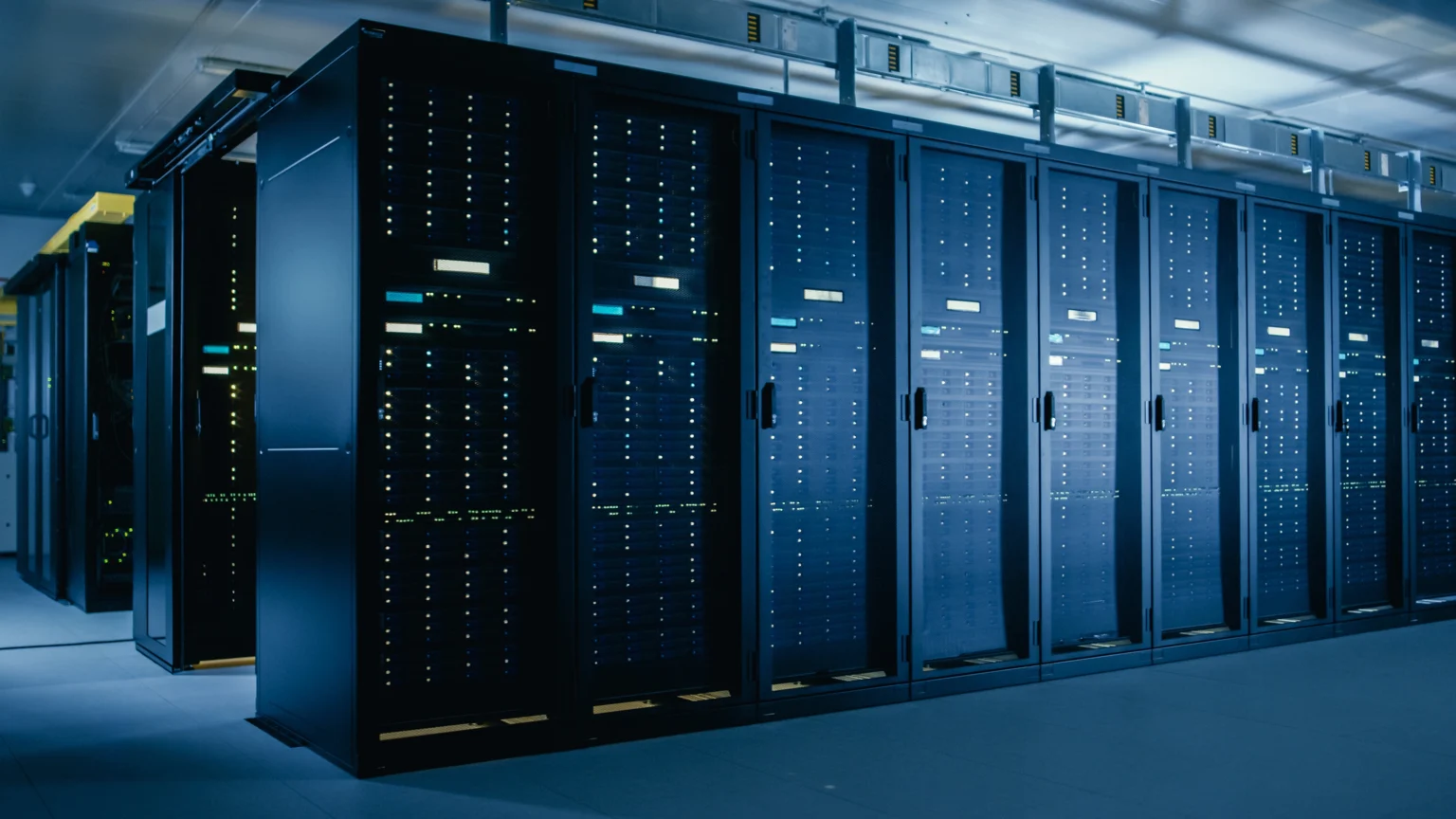

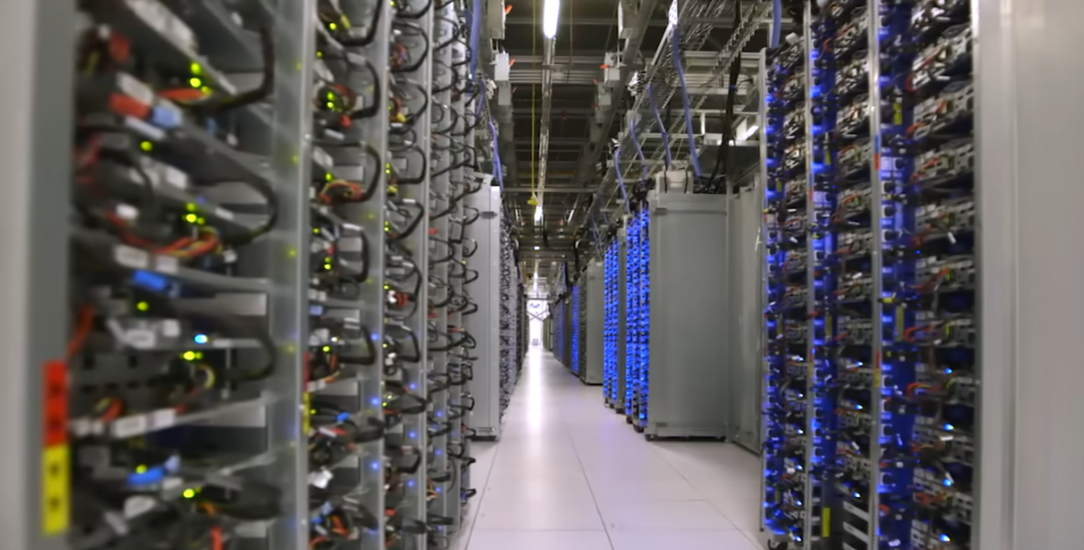

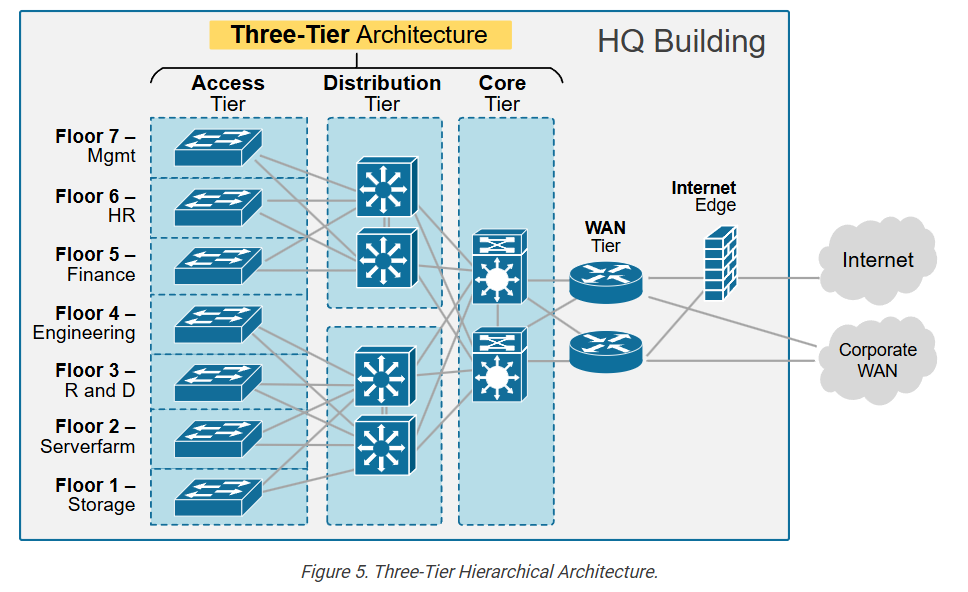

An enterprise router is a high-performance networking device designed for large organizations, businesses, and data centers. Unlike a normal home router, it is built to handle heavy network traffic, advanced routing, and high security requirements.

What is an Enterprise Router

An enterprise router connects multiple networks within a company and to the internet, while managing large amounts of data efficiently. It supports advanced routing protocols, security features, and high-speed connections for hundreds or even thousands of users.

Key Features of Enterprise Routers

1. High Performance
Enterprise routers can handle very high data traffic with fast processing speeds. They are designed for continuous operation without downtime.

2. Advanced Routing Protocols
They support complex protocols like OSPF, EIGRP, and BGP for efficient and dynamic routing in large networks.

3. Strong Security
Enterprise routers include advanced security features such as firewalls, VPN support, intrusion prevention, and access control lists (ACLs).

4. Scalability
They can easily expand as the organization grows by adding modules, interfaces, or upgrading capacity.

5. Redundancy & Reliability
These routers support backup links, failover mechanisms, and load balancing to ensure network availability.

6. Multiple Interface Support
They provide various ports like Gigabit Ethernet, fiber (SFP), and WAN interfaces for connecting different network types.

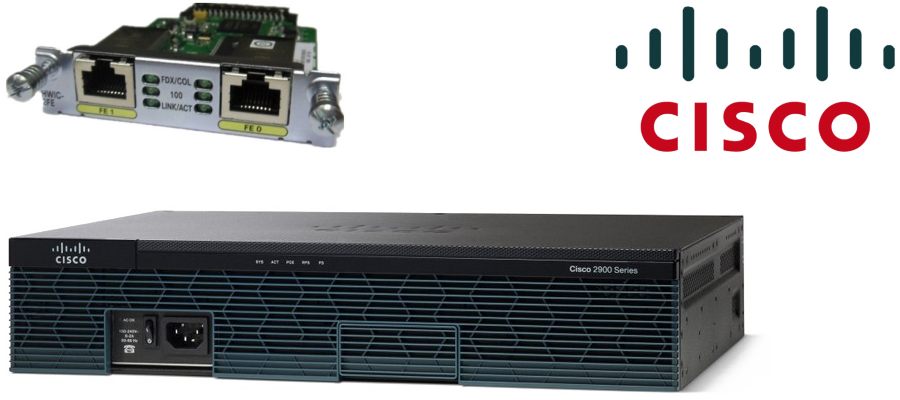

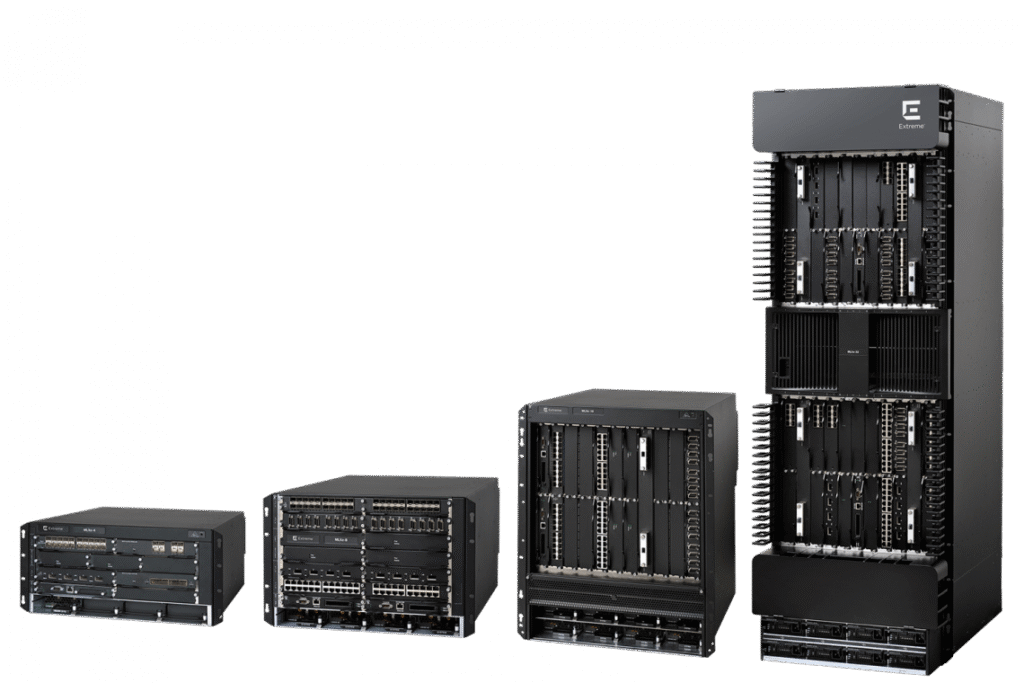

Examples of Enterprise Routers

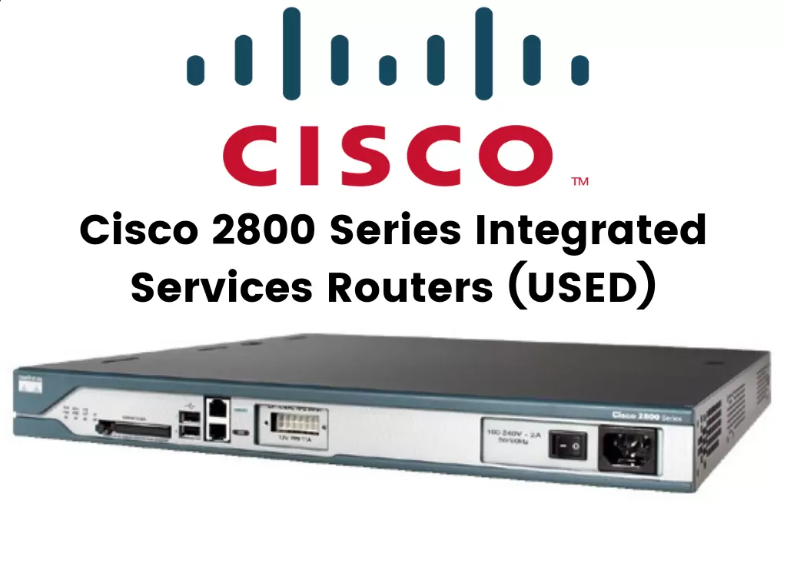

Cisco ISR 4000 Series – Widely used in enterprises for branch networking.
Juniper MX Series – High-end routers used by ISPs and large companies.
Huawei AR Series – Cost-effective enterprise solution with strong features.

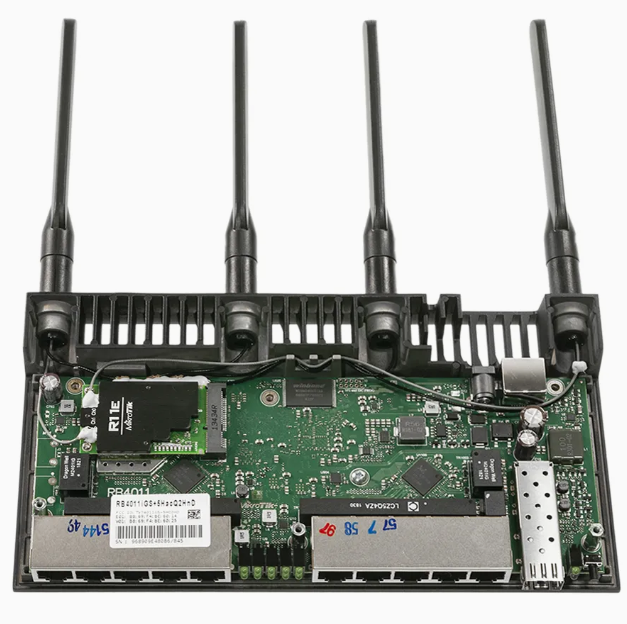

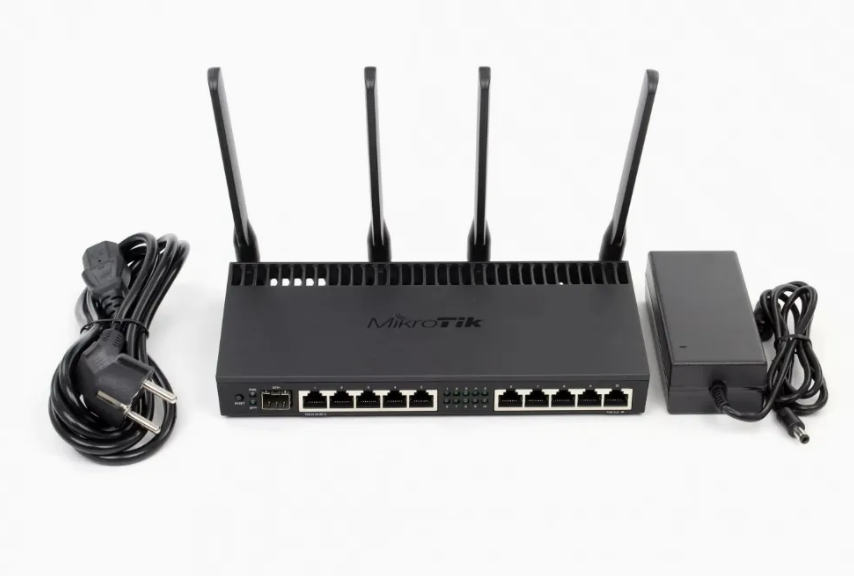

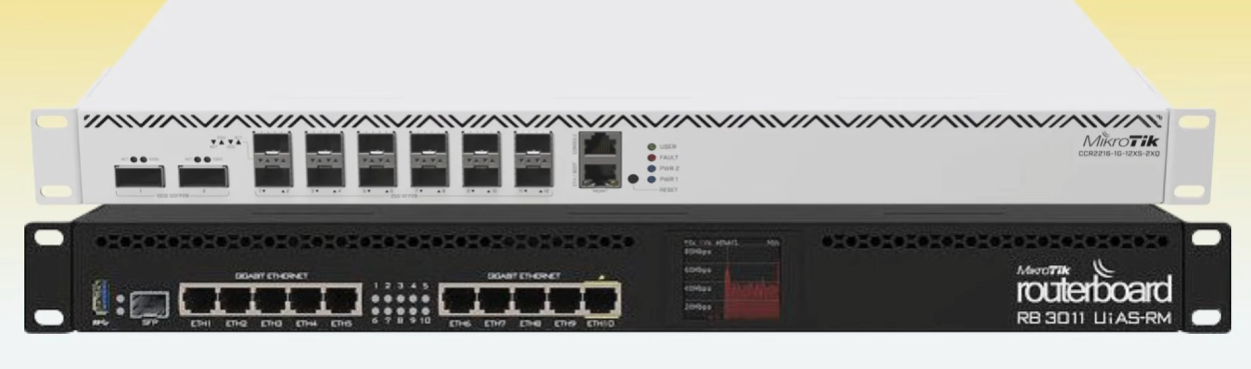

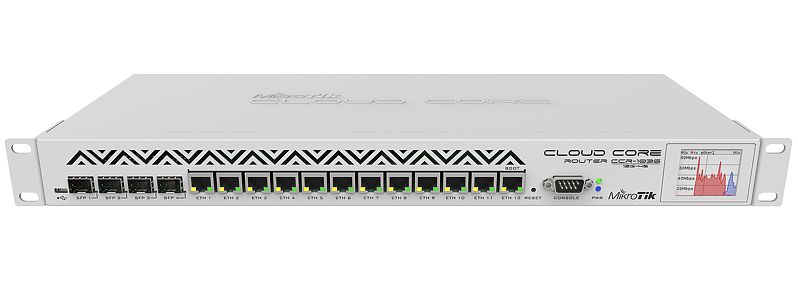

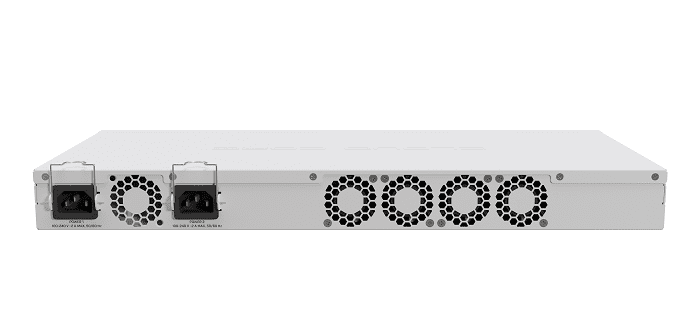

MikroTik CCR Series – Powerful and budget-friendly for advanced users.
