PBX & EAPBX System

History of the Intercom System

Real-Life Examples of Intercom Systems

Types of Intercom Systems

1. Wired Audio Intercom

A wired audio intercom is the traditional type of intercom system that uses physical cables to connect all intercom stations. It provides clear and reliable two-way voice communication without requiring an internet connection. Because of its stability and low maintenance, it is widely used in offices, schools, hospitals, and factories.

2. Wireless Intercom

A wireless intercom communicates using radio frequency (RF) or Wi-Fi instead of cables. It is easy to install and can be moved from one location to another, making it ideal for temporary installations or places where running cables is difficult. Wireless intercoms are commonly used in homes, warehouses, construction sites, and events.

3. Video Intercom

A video intercom combines voice communication with live video. It includes a camera, microphone, speaker, and display, allowing users to see and talk to visitors before granting access. Video intercoms improve security and are commonly installed in apartments, homes, offices, and gated communities.

4. IP Intercom

An IP intercom uses an Ethernet network or the internet to transmit voice and video. Since it operates over an IP network, it can communicate across multiple buildings or even remote locations. IP intercom systems support high-quality audio and video and can integrate with CCTV, access control systems, and IP PBX solutions. They are widely used in corporate offices, hospitals, airports, and universities.

5. SIP Intercom

A SIP intercom is an IP-based intercom that uses the Session Initiation Protocol (SIP) to communicate with VoIP phones and IP PBX systems. It allows users to make calls between SIP devices and can be easily integrated into existing business telephone networks. SIP intercoms are commonly used in hotels, offices, smart buildings, and large organizations.

6. Paging Intercom

A paging intercom is designed for one-to-many communication. Instead of speaking to a single person, it broadcasts announcements through multiple speakers simultaneously. Paging intercoms are commonly used for public announcements, emergency notifications, and general communication in schools, hospitals, shopping malls, and factories.

7. Door Entry Intercom

A door entry intercom allows visitors to communicate with people inside a building before entering. The system usually includes a call button, microphone, speaker, and sometimes a camera. Many door entry intercoms also allow users to remotely unlock doors, making them popular in homes, apartments, offices, and commercial buildings.

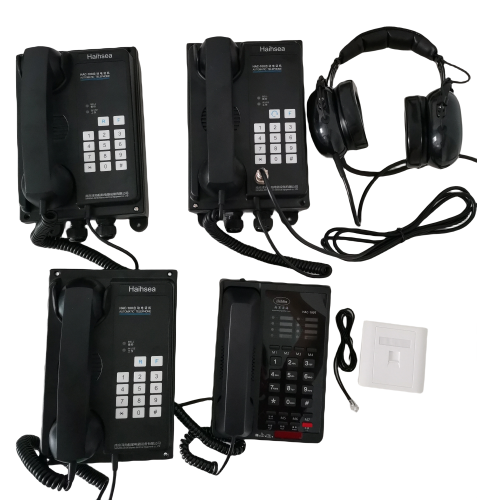

8. Industrial Intercom

An industrial intercom is specially designed for harsh and noisy environments such as factories, mines, power plants, and oil refineries. These systems are built with rugged, weatherproof equipment and powerful speakers to ensure clear communication even in challenging conditions. Many industrial intercoms also include emergency call buttons and alarm integration for worker safety.

Benefits of an Intercom System in Organizations, Schools, Colleges, and Hospitals

1. Benefits in Organizations

An intercom system enables employees to communicate instantly without using mobile phones or external telephone lines. It improves coordination between departments such as Reception, HR, Accounts, Sales, and Management. This reduces response time, increases productivity, and lowers communication costs. Intercoms also support visitor management and internal announcements, making office operations more efficient.

2. Benefits in Schools

In schools, an intercom system allows the principal or administration to make announcements to classrooms quickly and clearly. It is useful for emergency alerts, timetable changes, exam notifications, and general information. Teachers can also communicate with the office without leaving their classrooms, improving both safety and operational efficiency.

3. Benefits in Colleges

Colleges use intercom systems to improve communication across departments, administrative offices, libraries, laboratories, and hostels. Staff can coordinate academic and administrative activities more efficiently. Intercoms are also valuable for campus-wide announcements, emergency communication, and managing events, helping ensure smooth daily operations.

4. Benefits in Hospitals

In hospitals, intercom systems provide fast communication between doctors, nurses, reception, laboratories, pharmacies, and emergency departments. During medical emergencies, staff can immediately request assistance, reducing response times and improving patient care. Intercoms also support public announcements, visitor guidance, and coordination between different hospital units.

Overall Benefits of an Intercom System:

Provides fast and reliable internal communication.
Reduces telephone and mobile communication costs.
Improves teamwork and coordination.
Saves time by enabling instant communication.
Supports emergency communication and safety.
Enhances operational efficiency and productivity.
Can integrate with paging systems, access control, CCTV, and IP PBX systems.
Improves customer, student, and patient service through quicker response times.

Summary:

An intercom system is an essential communication tool for organizations, schools, colleges, and hospitals. It enables quick internal communication, increases efficiency, improves safety, and helps staff coordinate their work more effectively while reducing communication costs.

Deployment Locations of an Intercom System

An intercom system can be deployed in many types of buildings and facilities where fast, reliable internal communication is needed. Below are the most common deployment locations.

1. Offices and Corporate Buildings

Intercom systems are installed in reception areas, management offices, conference rooms, and different departments to enable quick communication between employees and improve office productivity.

2. Schools

Schools deploy intercom systems in the principal’s office, classrooms, staff rooms, libraries, laboratories, and playgrounds. They are used for announcements, emergency alerts, and communication between teachers and the administration.

3. Colleges and Universities

Intercom systems are installed in administrative offices, lecture halls, laboratories, libraries, hostels, security offices, and campus buildings. They help coordinate academic activities and provide campus-wide communication.

4. Hospitals

Hospitals use intercom systems in reception areas, emergency departments, nurse stations, operating theaters, ICUs, wards, laboratories, pharmacies, and administrative offices. They enable rapid communication for patient care and emergency response.

5. Hotels

Hotels install intercom systems at the reception desk, guest rooms, housekeeping offices, kitchens, restaurants, security rooms, and management offices to improve guest service and staff coordination.

6. Residential Apartments

Apartment buildings deploy intercom systems at the main entrance, security gate, reception, parking area, and individual apartments. Residents can communicate with visitors and remotely unlock entrance doors.

7. Factories and Industrial Plants

Industrial intercom systems are installed in production floors, control rooms, warehouses, maintenance departments, loading docks, and security checkpoints. They provide reliable communication in noisy working environments.

8. Shopping Malls and Retail Stores

Intercom systems are used at customer service desks, security rooms, management offices, warehouses, billing counters, and retail floors for staff communication and public announcements.

9. Airports and Railway Stations

Airports and railway stations deploy intercom systems in control rooms, ticket counters, boarding gates, platforms, security checkpoints, and information desks to coordinate staff and make public announcements.

10. Government Buildings and Banks

Government offices and banks install intercom systems in reception areas, executive offices, customer service counters, security rooms, and server rooms to improve communication and security.

Summary:

Intercom systems are deployed wherever people need fast, secure, and reliable internal communication. Common deployment locations include offices, schools, colleges, hospitals, hotels, apartments, factories, shopping malls, airports, railway stations, banks, and government buildings, helping improve communication, coordination, safety, and operational efficiency.

History of the Telephony System

The history of the telephony system began in 1876, when Alexander Graham Bell invented the first practical telephone. This invention made it possible to transmit the human voice over electrical wires.

In the early years, telephone calls were connected manually by operators using switchboards. Users requested a connection, and the operator physically connected the call.

As technology advanced, automatic telephone exchanges replaced manual switchboards. This allowed calls to be connected automatically, making communication faster and more reliable.

In the 1980s and 1990s, businesses widely adopted EPABX/PBX systems, enabling internal extension dialing, call transfer, and efficient call management within organizations.

Today, modern telephony systems use IP Telephony (VoIP), where voice calls are transmitted over computer networks and the Internet. These systems offer advanced features such as video calling, voicemail, conference calling, call recording, and integration with business applications.

The evolution of telephony has transformed communication from simple wired voice calls to intelligent, internet-based communication systems used worldwide.

What is an Automatic Telephone Exchange?

An Automatic Telephone Exchange (ATE) is a telephone switching system that automatically connects telephone calls between users without the need for a human operator.

When a user dials a telephone number or extension, the exchange identifies the destination and automatically establishes the connection. This makes communication faster, more accurate, and more efficient.

Automatic Telephone Exchanges replaced manual switchboards, where operators had to connect calls by plugging cables into switchboard sockets.

Today, Automatic Telephone Exchange technology is used in EPABX, PBX, and IP PBX systems in offices, schools, hospitals, hotels, factories, and other organizations to provide internal extensions and manage incoming and outgoing calls.

Example: If an employee dials Extension 102, the EPABX automatically connects the call to Extension 102 without requiring assistance from a receptionist or telephone operator.

Automatic Telephone Exchange Inventor Details

The Automatic Telephone Exchange (ATE) was invented by Almon Brown Strowger, an American undertaker (funeral director). He is known as the Father of the Automatic Telephone Exchange.

Before his invention, all telephone calls were connected manually by telephone operators using switchboards. Strowger believed that some operators were deliberately redirecting calls to a competitor’s business, so he decided to create a system that could connect calls automatically without human intervention.

In 1889, Strowger patented the Strowger Switch, the world’s first practical automatic telephone exchange. His invention allowed telephone users to dial numbers directly, and the exchange automatically connected the call to the correct destination.

The Strowger Switch became the foundation of modern telephone exchanges and led to the development of today’s PBX, EPABX, digital telephone exchanges, and IP telephony systems used in businesses around the world.

Almon Brown Strowger – Biography?

Almon Brown Strowger (1839–1902) was an American inventor and undertaker (funeral director). He is best known for inventing the Automatic Telephone Exchange and the Strowger Switch.

Before his invention, telephone calls were connected manually by operators. In 1889, Strowger patented the first practical automatic telephone exchange, allowing calls to be connected automatically without a human operator.

His invention revolutionized the telephone industry and became the foundation for modern PBX, EPABX, and digital telephone systems used around the world today.

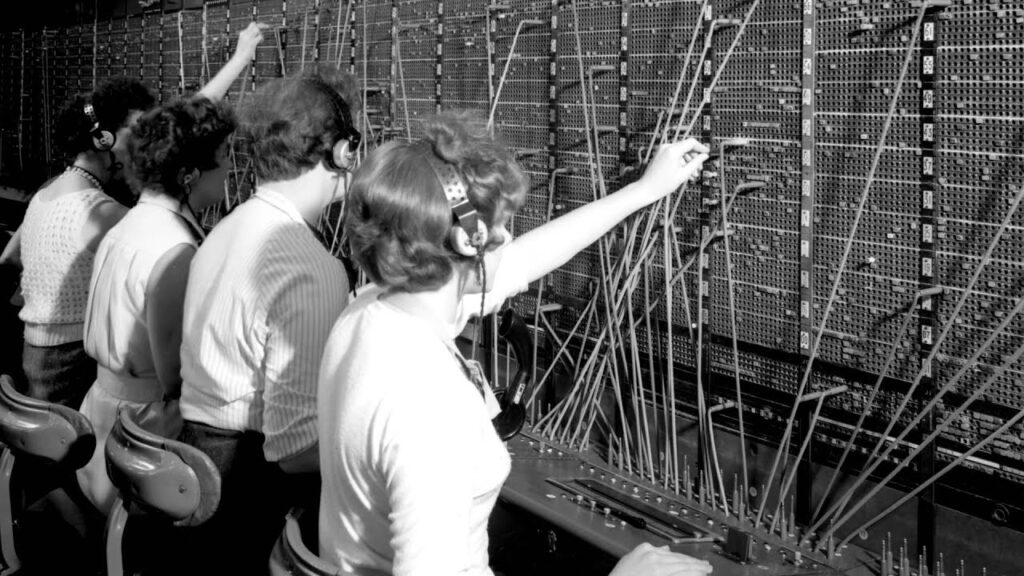

Manually by Operators

Automatic Telephone Exchange

What is a Telephony System?

A telephony system is a communication system that enables people to make, receive, and manage voice calls over various types of networks, including traditional telephone lines, mobile networks, and Internet Protocol (IP) networks. It provides reliable voice communication between individuals, departments, and organizations.

A telephony system consists of several components, such as telephones, telephone lines, switching equipment (such as an EPABX or IP PBX), gateways, and communication software. These components work together to establish, route, and terminate voice calls efficiently.

In a business environment, a telephony system allows employees to communicate using internal extension numbers while also making and receiving external calls through the public telephone network or VoIP services. This improves communication, reduces costs, and increases operational efficiency.

Modern telephony systems support a wide range of features, including call transfer, call forwarding, voicemail, conference calling, caller ID, auto attendant (IVR), call recording, call queues, and integration with customer relationship management (CRM) and other business applications.

There are two main types of telephony systems: traditional telephony, which uses the Public Switched Telephone Network (PSTN) and analog or digital telephone lines, and IP telephony (VoIP), which transmits voice calls over computer networks and the Internet using Internet Protocol (IP).

Telephony systems are widely used in offices, hospitals, hotels, schools, government organizations, call centers, factories, and other businesses where reliable voice communication is essential for daily operations.

The main advantages of a telephony system include improved communication, centralized call management, reduced communication costs, increased productivity, scalability, and support for advanced communication features that enhance both internal collaboration and customer service.

Why Do Schools, Hospitals, Offices, and Organizations Need a Telephony System?

A telephony system is essential because it provides fast, reliable, and organized communication between employees, departments, customers, patients, students, and visitors. It helps organizations communicate efficiently, respond quickly, and improve daily operations.

In schools and colleges, a telephony system enables communication between the principal’s office, teachers, administration, library, security, and other departments. It also allows parents and visitors to contact the appropriate department quickly and supports emergency communication across the campus.

In hospitals, a telephony system is critical for coordinating communication between doctors, nurses, reception, laboratories, pharmacies, emergency departments, and administrative staff. Fast communication can improve patient care, reduce response times, and help medical staff handle emergencies efficiently.

In offices and corporate organizations, a telephony system allows employees to communicate through internal extension numbers without using external telephone lines. It supports customer service, department-to-department communication, conference calls, call transfers, voicemail, and professional handling of incoming business calls.

In government offices and large organizations, a telephony system improves communication between departments, branch offices, and public service counters. It helps staff share information quickly, reduces communication delays, and increases operational efficiency.

A telephony system also helps organizations reduce communication costs by allowing internal extension-to-extension calls without using public telephone networks. It centralizes call management, making it easier to monitor, route, and record calls when required.

Modern telephony systems provide advanced features such as Auto Attendant (IVR), Call Transfer, Call Forwarding, Conference Calling, Voicemail, Caller ID, Call Recording, and Call Queuing, which improve customer service and employee productivity.

Overall, a telephony system is an essential communication solution that enhances collaboration, improves response times, reduces costs, increases productivity, and ensures reliable communication across the entire organization.

RealLife Examples of Telephony System Usage

Example 1: School:

A school has a principal’s office, reception, accounts department, library, computer lab, staff room, and security office. Each department has its own extension number connected to the school’s EPABX system.

For example, a parent calls the school’s main number. The receptionist answers the call and transfers it to the Accounts Department (Extension 103) or the Principal’s Office (Extension 101). Teachers can also call the office or security using extension numbers without using external phone lines.

Example 2: Hospital:

A hospital has departments such as Reception, Emergency, ICU, Laboratory, Pharmacy, Accounts, and Doctors’ Rooms. All departments are connected through a telephony system.

For example, a doctor in the ICU needs an urgent blood test. Instead of walking to the laboratory, the doctor simply dials the Laboratory extension. The laboratory staff receives the call immediately and begins processing the request, saving valuable time during patient care.

Example 3: Office:

A company has Reception, HR, Sales, Accounts, IT Support, and the Managing Director’s office.

When a customer calls the company’s main phone number, the receptionist transfers the call to the Sales Department. If an employee needs IT support, they simply dial the IT department’s extension instead of using a mobile phone, making communication faster and more cost-effective.

Example 4: Hotel:

A hotel uses a telephony system to connect Reception, Guest Rooms, Housekeeping, Room Service, Maintenance, and Security.

For example, a guest in Room 205 dials the Room Service extension to order food. The Room Service department receives the call instantly, prepares the order, and delivers it to the guest without requiring the guest to call an external phone number.

Example 5: Factory:

A factory has Production, Quality Control, Warehouse, Maintenance, Security, and Administration departments connected by a telephony system.

For example, the Production Department discovers that a machine has stopped working. The supervisor immediately calls the Maintenance Department using an internal extension. Maintenance engineers respond quickly, reducing production downtime.

These examples show how a telephony system improves communication, saves time, reduces telephone costs, and helps organizations operate more efficiently.

Problems Without a Telephony System?

Without a telephony system, communication within an organization becomes slower, less organized, and more expensive. Employees may have to use personal mobile phones or physically walk to another department to deliver messages, which wastes time and reduces productivity.

In a school, teachers may need to leave their classrooms to contact the principal’s office or administration. During emergencies, communicating with security or other departments can be delayed, affecting student safety and daily operations.

In a hospital, the absence of a telephony system can lead to serious communication delays. Doctors, nurses, laboratories, pharmacies, and emergency departments may not be able to communicate quickly, which can delay treatment and negatively impact patient care.

In an office, employees cannot easily transfer customer calls or contact other departments using extension numbers. Customers may experience long wait times or be disconnected, leading to poor customer service and lost business opportunities.

In a hotel, guests may have difficulty reaching room service, housekeeping, or the reception desk. Staff coordination becomes slower, reducing the quality of guest service and overall operational efficiency.

Without a centralized telephony system, organizations also lose important features such as call transfer, voicemail, conference calling, call forwarding, auto attendant (IVR), call recording, and centralized call management. This makes communication less professional and harder to manage.

Overall, the lack of a telephony system results in slower communication, increased operating costs, lower productivity, reduced customer satisfaction, and less effective coordination between departments.

What is PBX System?

PBX (Private Branch Exchange) is a private telephone system used within an organization to manage internal and external telephone communications. It allows employees to make internal calls using extension numbers and share a limited number of external telephone lines.

A PBX acts as a central switching system that connects telephones within an office and routes incoming and outgoing calls efficiently. It enables users to communicate without using the public telephone network for internal calls.

PBX systems provide features such as extension dialing, call transfer, call forwarding, conference calling, voicemail, caller ID, and auto attendant (IVR), improving communication and productivity.

PBX systems are commonly used in offices, schools, hospitals, hotels, factories, banks, and government organizations where multiple telephones need to communicate through a centralized system.

Example: A company has 50 employees and only 10 external telephone lines. Using a PBX, all employees receive their own extension number and can call each other internally, while sharing the 10 external lines for outside calls.

What is EPABX System?

EPABX (Electronic Private Automatic Branch Exchange) is an electronic private telephone system used in organizations to manage internal and external telephone communications. It allows employees to communicate using extension numbers and automatically connects calls without the need for a human operator.

An EPABX acts as a central telephone exchange that connects telephones, extension lines, and external telephone lines. It automatically routes incoming and outgoing calls, making communication faster and more efficient.

EPABX systems provide features such as extension dialing, call transfer, call forwarding, conference calling, voicemail, auto attendant (IVR), caller ID, and call recording.

EPABX systems are widely used in offices, schools, hospitals, hotels, factories, banks, and government organizations to improve communication, reduce telephone costs, and increase productivity.

Example: In an office, an employee dials Extension 105 to speak with the Accounts Department. The EPABX automatically connects the call to Extension 105 without requiring a receptionist or telephone operator.

Key Features of EPABX:

Automatic Call Transfer: Automatically transfers incoming calls to the appropriate extension without requiring a telephone operator.
Extension Dialing: Allows users to call colleagues internally using short extension numbers instead of full telephone numbers.
Call Hold: Places a caller on hold temporarily while the user attends another call or retrieves information.
Call Transfer: Transfers an active call from one extension to another without disconnecting the caller.
Call Forwarding: Redirects incoming calls to another extension or mobile phone when the user is unavailable or busy.
Conference Calling: Enables three or more participants to communicate together in a single telephone call.
Auto Attendant (IVR): Automatically answers incoming calls and guides callers to the appropriate department using voice prompts.
Voicemail: Records voice messages when the called person cannot answer, allowing messages to be retrieved later.
Caller ID Display: Displays the caller’s name or phone number before the call is answered.
Call Waiting: Alerts users about another incoming call while they are already on an active call.
Call Pickup: Allows a user to answer a ringing call from another extension within the same office.
Speed Dial: Stores frequently dialed numbers, allowing users to make calls quickly with a single button or short code.
Do Not Disturb (DND): Prevents incoming calls from ringing the extension when the user does not wish to be disturbed.
Music on Hold (MOH): Plays music or recorded announcements while callers are waiting on hold.
Call Logging: Maintains detailed records of incoming, outgoing, and missed calls for monitoring and reporting.
Least Cost Routing (LCR): Automatically selects the most economical telephone line for outgoing calls, reducing communication costs.
Hotline / Direct Dial: Automatically dials a predefined number when the handset is lifted or a specific key is pressed.
Night Mode: Routes incoming calls differently during non-business hours, such as to security, reception, or voicemail.
Paging and Intercom: Enables instant voice communication and announcements between internal extensions.
Multiple CO Line Support: Supports multiple external telephone lines, allowing several users to make and receive calls simultaneously.
Call Recording (if supported): Records telephone conversations for quality assurance, training, or legal compliance.
Busy Lamp Field (BLF): Displays the status of extensions (idle, busy, or ringing), helping users know whether an extension is available.
Direct Inward Dialing (DID): Allows external callers to reach specific extensions directly without going through the operator.
Toll Restriction / Call Barring: Restricts selected extensions from making local, national, international, or premium-rate calls to control telephone expenses.
Hunt Groups: Automatically distributes incoming calls among a group of extensions so that calls are answered more efficiently.
Operator Console Support: Provides receptionists or operators with an interface to manage, monitor, transfer, and route calls efficiently.
Emergency Call Support: Ensures users can quickly place emergency calls and, in some systems, automatically provides caller location information.
Remote Extension Support: Allows employees to use their office extension from remote locations through the internet or VPN.
SIP Trunk Support (in IP EPABX Systems): Connects the EPABX to Internet Telephony Service Providers (ITSPs) using SIP, reducing the need for traditional telephone lines.
Voice over IP (VoIP) Support (in IP EPABX Systems): Enables voice communication over IP networks, reducing call costs while providing high-quality voice and advanced communication features.

Difference Between PBX and EPABX System?

PBX (Private Branch Exchange) is a private telephone system used in an organization to manage internal and external telephone calls. Early PBX systems often required a human operator or used electromechanical switching to connect calls.

EPABX (Electronic Private Automatic Branch Exchange) is an advanced electronic version of the PBX. It automatically connects telephone calls without the need for a human operator, making communication faster and more efficient.

The main difference is that PBX refers to the general private telephone exchange system, while EPABX is an electronic and automatic PBX that uses electronic switching technology.

EPABX also provides advanced features such as extension dialing, call transfer, call forwarding, conference calling, voicemail, auto attendant (IVR), caller ID, and call recording, whereas older PBX systems typically offered fewer features.

Today, most businesses, schools, hospitals, hotels, and government organizations use EPABX systems because they are more reliable, easier to manage, and support modern communication requirements.

Example: In an old PBX system, an operator might manually connect a call to another extension. In an EPABX system, when you dial Extension 105, the system automatically connects the call without any operator.

Summary

PBX = Private telephone exchange for internal and external calls.
EPABX = Electronic Private Automatic Branch Exchange that automatically manages calls and offers advanced features

Difference Between PBX and EPABX System:

PBX (Private Branch Exchange)	EPABX (Electronic Private Automatic Branch Exchange)
PBX is an older telephone exchange system.	EPABX is a modern electronic version of PBX.
Manual operator assistance may be required for some call transfers.	Calls are transferred automatically without an operator.
Uses electromechanical switching.	Uses electronic or digital switching.
Slower call processing.	Faster and more reliable call processing.
Limited features.	Provides many advanced features.
More maintenance is required.	Requires less maintenance.
Lower efficiency.	Higher efficiency and better performance.
Suitable for small or old office setups.	Suitable for modern offices, schools, hospitals, hotels, and organizations.

Types of PBX Systems?

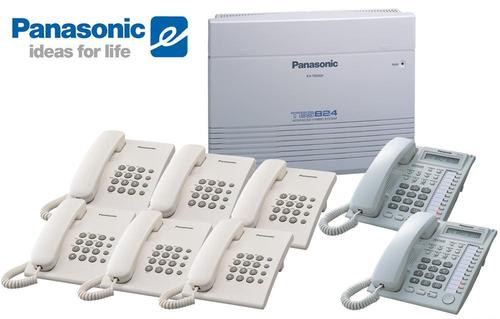

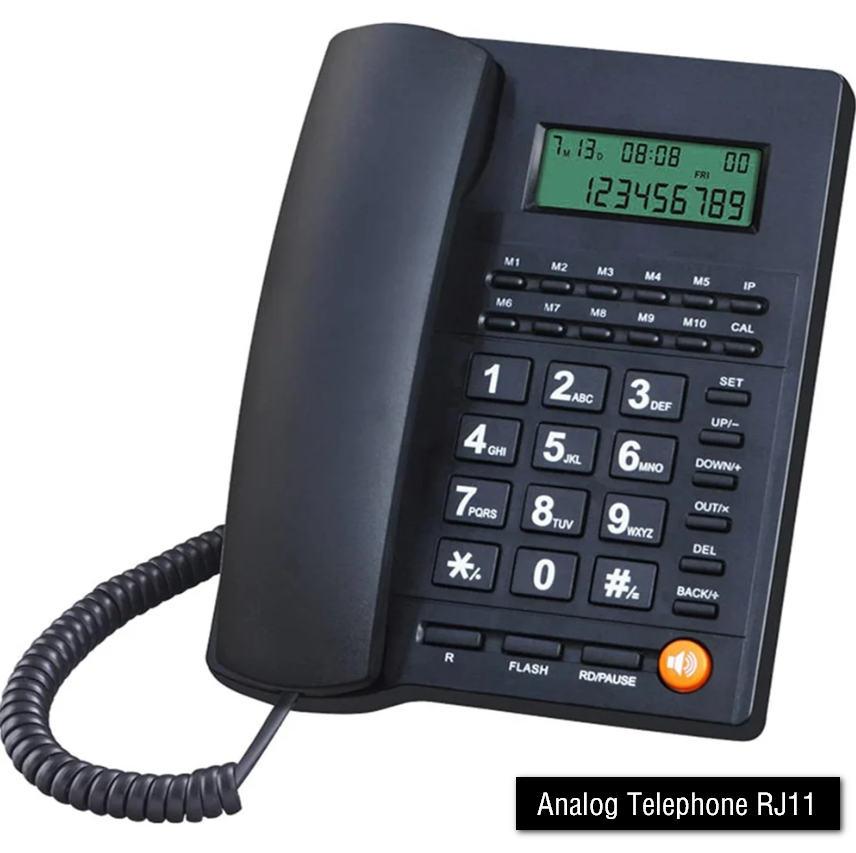

1. Analog PBX:

An Analog PBX uses traditional analog telephone lines (PSTN) to connect internal and external calls. It supports basic telephony features such as extension dialing, call transfer, call hold, and call forwarding. Analog PBX systems are reliable and easy to operate, making them suitable for small businesses and offices with basic communication requirements.

2. Digital PBX:

A Digital PBX uses digital switching technology instead of analog circuits, providing better voice quality, faster call processing, and greater reliability. It supports advanced features such as voicemail, caller ID, conference calling, auto attendant, and call logging. Digital PBX systems are commonly used in medium and large organizations.

3. IP PBX (Internet Protocol PBX):

An IP PBX uses Internet Protocol (IP) networks to transmit voice calls through VoIP (Voice over Internet Protocol) technology. It supports IP phones, softphones, video conferencing, SIP trunks, and remote extensions. IP PBX systems reduce communication costs, improve flexibility, and are ideal for modern businesses with multiple locations or remote employees.

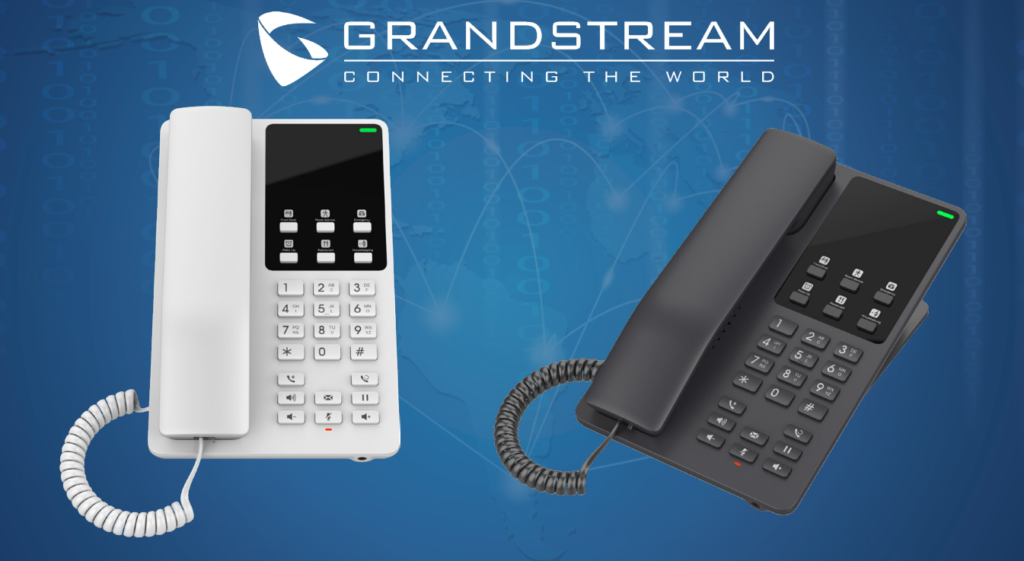

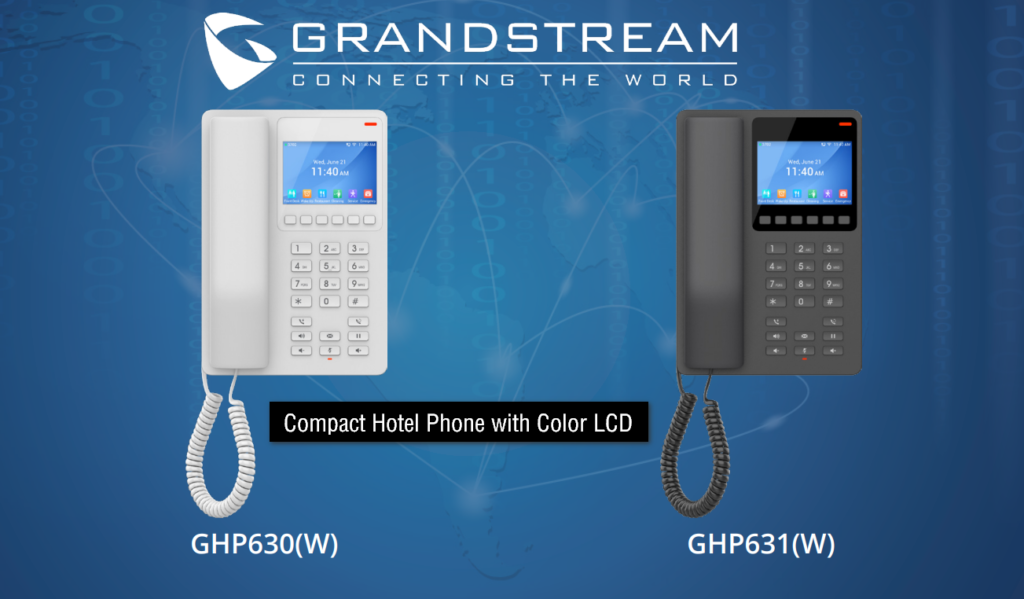

Grandstream GHP63x Series Hotel IP Phones

Hotel-Oriented Design:

The Grandstream GHP63x Series Hotel IP Phones are specially designed for the hospitality industry. Unlike standard office IP phones, they include features that improve guest communication and hotel operations. They are ideal for hotels, resorts, serviced apartments, dormitories, hospitals, and guest houses.

Customizable Service Keys:

One of the key features of the GHP63x Series is its programmable service keys. Hotels can configure these keys to provide one-touch access to services such as Front Desk, Housekeeping, Room Service, Restaurant, Concierge, Wake-Up Call, Maintenance, and Emergency Assistance. This allows guests to contact hotel services quickly and conveniently.

Color LCD Display:

The phones feature a 3.5-inch color LCD display that clearly shows caller information, date, time, menus, and service options. The color display improves usability and provides a more modern and professional user experience.

Built-in Wi-Fi 6 (W Models):

The GHP630W and GHP631W models include dual-band Wi-Fi 6, allowing the phones to connect to the network wirelessly. This eliminates the need for Ethernet cabling in locations where wired connections are difficult or unavailable.

USB Type-C Charging Port:

The GHP63x Series includes a USB Type-C charging port, allowing guests to charge smartphones and other compatible devices directly from the phone. This provides additional convenience for hotel guests.

HD Voice Quality:

The phones support HD Voice and advanced audio codecs such as Opus, delivering crystal-clear voice communication. Even in networks with packet loss or limited bandwidth, the phones maintain excellent audio quality.

GDMS Cloud Management:

The GHP63x Series supports Grandstream Device Management System (GDMS), enabling administrators to remotely deploy, configure, monitor, and update phones from a centralized cloud platform. This greatly simplifies device management across multiple hotel locations.

Flexible Installation:

These phones can be installed on a desk or mounted on a wall, providing flexibility for different hotel room layouts and installation requirements.

Enterprise-Level Security:

The phones include advanced security features such as Secure Boot, encrypted configuration files, and secure communication protocols. These features help protect the devices and ensure secure voice communications.

Multiple SIP Accounts:

The GHP63x Series supports 2 SIP accounts and 2 lines, allowing hotels to manage internal extension calls and external calls efficiently through a single device.

Summary:

The Grandstream GHP63x Series Hotel IP Phones provide several features that are not commonly found in standard IP phones, including customizable hotel service keys, a color LCD display, Wi-Fi 6 (selected models), USB Type-C charging, GDMS cloud management, HD voice quality, enterprise security, flexible installation, and hospitality-focused functionality. These features make the GHP63x Series an excellent communication solution for hotels and other hospitality environments.

4. Hosted PBX (Cloud PBX):

A Hosted PBX, also known as Cloud PBX, is a telephone system hosted and managed by a cloud service provider. No PBX hardware is required at the customer’s premises because all call processing is performed in the cloud. Users can access the system through the internet from any location, making it a cost-effective and scalable solution for businesses of all sizes.

5. Hybrid PBX:

A Hybrid PBX combines the features of both Analog PBX and IP PBX in a single system. It allows organizations to use traditional analog telephone lines while gradually adopting VoIP technology. This provides flexibility, protects existing investments, and enables a smooth migration to IP-based communication.

5. Software-Based PBX:

A Software-Based PBX (Private Branch Exchange) is a telephone system that runs as software on a computer, virtual machine (VM), or cloud server instead of using a dedicated PBX hardware appliance. It manages voice calls, video calls, extensions, voicemail, and other communication services over an IP network.

Unlike a traditional hardware PBX, a software-based PBX uses the server’s CPU, memory, and storage to perform all call processing and communication functions.

Real Example:

A company with 100 employees installs a software-based PBX on a virtual server.

Reception – Extension 100
Sales – Extension 101
Accounts – Extension 102
Manager – Extension 103

Employees use IP phones in the office and softphones on their laptops or smartphones. When an employee dials another extension, the software PBX connects the call. External calls are routed through a SIP trunk.

Summary:

A Software-Based PBX is a modern IP telephone system that runs on a server, virtual machine, or cloud platform rather than dedicated PBX hardware. It provides all the features of a traditional PBX—such as extension management, voice and video calling, IVR, voicemail, conferencing, and call routing—while offering greater flexibility, scalability, and lower deployment costs.

What is Software UCM?

SoftwareUCM is a software-based IP PBX solution that provides voice, video, messaging, conferencing, and unified communications without requiring dedicated PBX hardware. It can be deployed on virtual machines, private servers, or cloud infrastructure.

What is Grandstream Device Management System (GDMS)

What is Grandstream Device Management System (GDMS):

Grandstream Device Management System (GDMS) is a cloud-based device management platform developed by Grandstream. It enables administrators to remotely configure, monitor, provision, update, and manage Grandstream devices from a centralized web portal. With GDMS, there is no need to visit each device physically, making deployment and maintenance much easier.

How Does GDMS Work?

GDMS connects supported Grandstream devices to the cloud through an internet connection. After a device is registered with a GDMS account, administrators can log in through a web browser to view device status, change configurations, update firmware, and troubleshoot issues remotely. All management tasks are performed from a single centralized dashboard.

Devices Supported by GDMS:

GDMS supports a wide range of Grandstream products, including IP Phones, UCM IP PBX systems, SoftwareUCM, Video Intercoms, Wi-Fi Access Points (GWN Series), Routers, Analog Telephone Adapters (ATA), VoIP Gateways, and other compatible networking devices.

Key Features of GDMS:

GDMS provides centralized device management, zero-touch provisioning, remote configuration, firmware upgrades, device monitoring, backup and restore, bulk configuration, multi-site management, alerts, and real-time device status. These features help administrators deploy and maintain large numbers of devices efficiently.

Benefits of GDMS:

GDMS reduces installation time by allowing devices to be configured remotely. It lowers maintenance costs because administrators do not need to travel to remote sites. The platform improves operational efficiency by enabling centralized management, quick troubleshooting, automatic firmware updates, and easy deployment of new devices across multiple locations.

Real-World Example:

Suppose a company has a head office and several branch offices. Each office contains Grandstream IP phones, UCM IP PBX systems, Wi-Fi access points, and video intercom devices. Instead of visiting each office to configure or update the devices, the network administrator logs in to GDMS from any location. From the GDMS dashboard, the administrator can monitor device health, update firmware, change SIP settings, restart devices, and configure new installations remotely.

Benefits:

No need to configure each device manually.
Saves time and travel costs.
Centralized management for multiple locations.
Faster deployment of new devices.
Easy troubleshooting and maintenance.
Secure cloud-based access from anywhere.

Why Organizations Use GDMS:

Organizations use GDMS because it simplifies device management, reduces downtime, supports remote administration, improves security through centralized control, and allows IT teams to manage thousands of devices from a single platform. It is especially valuable for businesses with multiple branches, hotels, hospitals, schools, universities, and managed service providers (MSPs).

Summary:

Grandstream Device Management System (GDMS) is a cloud-based centralized management platform that enables organizations to deploy, configure, monitor, update, and maintain Grandstream communication and networking devices remotely. It simplifies administration, saves time and cost, improves operational efficiency, and provides a secure and scalable solution for managing devices across one or multiple locations.

Why Businesses Need a PBX System?

Businesses use a PBX (Private Branch Exchange) system to improve internal and external communication while reducing telephone costs. It provides a centralized telephone network that connects employees, departments, and customers efficiently.

Reasons Why Businesses Need a PBX:

Internal Communication: Allows employees to call each other using extension numbers without using external telephone lines, reducing communication costs.
Cost Savings: Shares a limited number of external telephone lines among many users, reducing installation and monthly telephone expenses.
Professional Call Management: Features such as call transfer, call forwarding, call hold, and auto attendant help manage customer calls professionally.
Improved Productivity: Employees can communicate quickly with different departments, improving workflow and reducing response time.
Multiple Users: Supports many extensions on a single telephone system, allowing several employees to make and receive calls simultaneously.
Better Customer Service: Automatically routes calls to the correct department, reducing waiting time and ensuring customers receive prompt assistance.
Scalability: New extensions and users can be added easily as the business grows without replacing the entire system.
Advanced Features: Modern PBX systems offer voicemail, conference calling, caller ID, call recording, and call logging to enhance business communication.
Centralized Management: All telephone extensions and call settings can be managed from a single system, making administration easier.
Business Continuity: IP PBX and Cloud PBX systems support remote extensions, allowing employees to stay connected even when working from home or other locations.

Example : Office

A company has several departments, including Reception, Sales, Technical Support, Human Resources (HR), Accounts, and the Manager’s office. Without a PBX system, employees would need separate telephone lines or mobile phones to communicate, which increases costs and reduces efficiency. With a PBX system, each department is assigned an extension number (e.g., Reception – 100, Sales – 101, HR – 102). Employees can communicate instantly by dialing extension numbers, and incoming customer calls can be transferred quickly to the appropriate department.

Company operates without a PBX?

When a company operates without a PBX (Private Branch Exchange) system, communication becomes slower, more expensive, and less organized. Each employee or department may require a separate telephone line, making it difficult to manage internal and external calls efficiently.

Problems Without a PBX:

Higher Communication Costs: Every employee may need a separate telephone line, increasing installation and monthly telephone expenses.
No Internal Extension Dialing: Employees cannot call each other using extension numbers and must use external phone numbers or mobile phones.
Difficult Call Transfer: Incoming calls cannot be transferred easily to the correct department, causing delays and inconvenience.
Poor Customer Service: Customers may experience long waiting times or may be connected to the wrong person.
Reduced Productivity: Employees waste time walking to other departments or using personal mobile phones for communication.
No Centralized Call Management: Telephone lines are managed separately, making monitoring and administration difficult.
Limited Communication Features: Advanced features such as voicemail, conference calling, auto attendant, call recording, and call forwarding are unavailable.

Real Example: Company Operating Without a PBX:

A computer sales and service company has 20 employees working in different departments such as Reception, Sales, Technical Support, Accounts, and the Manager’s office. The company does not have a PBX system. Each department uses a separate mobile phone or landline number for communication.

A customer calls the Reception and wants to speak with the Technical Support department. Since there is no PBX system, the receptionist cannot transfer the call directly. Instead, the receptionist gives the customer the Technical Support phone number and asks the customer to call again. This wastes time and creates inconvenience for the customer.

Similarly, if the Accounts department needs to speak with the Sales department, an employee must use a mobile phone, call the external number, or walk to the Sales office. This increases communication costs and reduces employee productivity.

As the company grows, managing multiple telephone numbers becomes more difficult. Customers may call the wrong department, employees may miss important calls, and the company appears less professional.

With a PBX system, each department receives an extension number (such as Reception – 100, Sales – 101, Technical Support – 102, Accounts – 103). The receptionist can transfer customer calls instantly, employees can communicate internally using extension numbers, and the company provides faster, more professional customer service while reducing telephone costs.

Benefits of IP PBX over Analog PBX

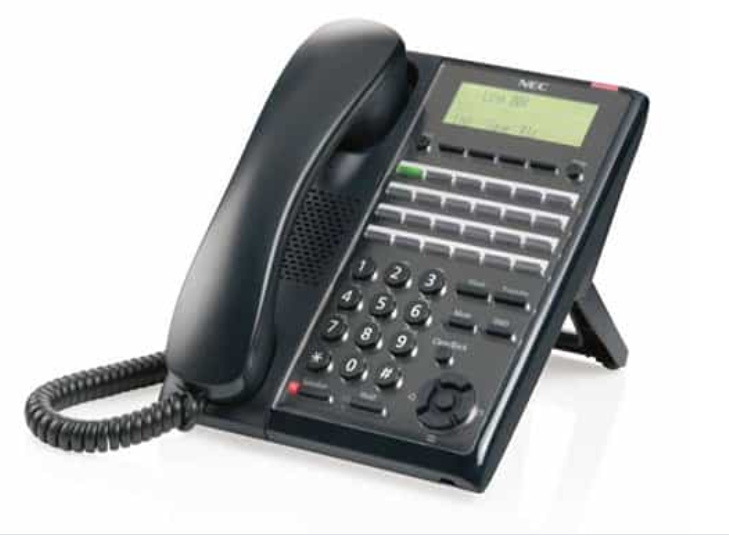

Analog PBX:

An Analog PBX (Private Branch Exchange) is a traditional telephone system that uses analog telephone lines (PSTN) to connect internal extensions and external calls. It provides basic telephony features such as extension dialing, call transfer, call hold, and call forwarding. Analog PBX systems are reliable and simple to operate but have limited advanced features and require dedicated telephone wiring.

IP PBX:

An IP PBX (Internet Protocol Private Branch Exchange) is a modern telephone system that uses Internet Protocol (IP) networks to transmit voice calls through Voice over Internet Protocol (VoIP) technology. It supports IP phones, softphones, SIP trunks, video conferencing, remote extensions, and advanced call management features. IP PBX systems are flexible, scalable, and cost-effective, making them ideal for modern businesses.

1. Lower Communication Cost:

An IP PBX uses Voice over Internet Protocol (VoIP) to transmit voice calls over an IP network instead of traditional telephone lines. This significantly reduces the cost of local, long-distance, and international calls, making it a cost-effective solution for businesses.

2. Better Voice Quality:

IP PBX systems provide high-definition (HD) voice quality with clearer audio and less background noise than traditional analog PBX systems. This improves communication between employees and customers.

3. Easy Installation and Scalability:

Unlike Analog PBX, which requires separate telephone wiring, an IP PBX uses the existing computer network (LAN/WAN). New extensions and users can be added easily without major hardware changes, making it ideal for growing organizations.

4. Remote Access and Mobility:

An IP PBX allows employees to use their office extension from home, branch offices, or any location with an internet connection. This supports remote work and ensures continuous business communication.

5. Advanced Communication Features:

IP PBX systems include advanced features such as auto attendant (IVR), voicemail, call recording, conference calling, video calling, call forwarding, caller ID, and call analytics. These features improve productivity and provide a more professional communication system.

6. Easy Integration with Business Applications:

An IP PBX can integrate with business applications such as CRM, ERP, email systems, and help desk software. This allows employees to access customer information, manage calls efficiently, and improve overall business operations.

7. Lower Maintenance and Future Expansion:

IP PBX systems require less physical hardware and can be managed through a web-based interface. Software updates can add new features without replacing the entire system, making IP PBX a flexible and future-ready communication solution.

Conclusion:

Compared to an Analog PBX, an IP PBX offers lower operating costs, superior voice quality, advanced features, easy expansion, remote accessibility, and better integration with modern business applications. These advantages make it the preferred choice for today’s businesses and organizations.

Difference Between IP PBX and Analog PBX

Analog PBX	IP PBX
Uses analog telephone lines (PSTN).	Uses IP networks (LAN/WAN/Internet).
Supports analog telephones.	Supports IP phones, softphones, and smartphones.
Higher long-distance call costs.	Lower call costs using VoIP technology.
Basic communication features.	Advanced features such as IVR, voicemail, video calling, and call recording.
Requires separate telephone cabling.	Uses the existing computer network.
Difficult to expand.	Easily scalable by adding new users and extensions.
Limited remote access.	Supports remote working from any location with an internet connection.
More hardware maintenance.	Easier management through a web-based interface.

What is FXS (Foreign Exchange Station)?

FXS (Foreign Exchange Station) is an analog telephone interface that provides telephone service to analog devices such as telephones, fax machines, and cordless phones. An FXS port generates the dial tone, supplies battery power, and provides the ringing voltage needed for analog telephones to make and receive calls.

An FXS port is commonly found on IP PBX systems, EPABX systems, VoIP gateways, and Analog Telephone Adapters (ATA). It acts as the service provider for the connected analog telephone by supplying the electrical signals required for normal telephone operation.

When a user lifts the handset of an analog telephone connected to an FXS port, the FXS port detects that the phone is off-hook and immediately provides a dial tone. The user can then dial an extension number or an external telephone number. During an incoming call, the FXS port sends a ringing voltage that causes the telephone to ring until the call is answered.

For example, in an office with an IP PBX and 20 analog telephones, each telephone is connected to an FXS port. When an employee picks up the handset, the FXS port provides the dial tone. When another employee or an outside caller calls that extension, the FXS port sends the ringing signal, allowing the employee to answer the call.

In simple terms, an FXS port provides telephone service to analog phones. Without an FXS port, an analog telephone cannot receive a dial tone, ring during incoming calls, or communicate through the telephone system.

What is FXO (Foreign Exchange Office)?

FXO (Foreign Exchange Office) is an analog telephone interface that connects a PBX, EPABX, IP PBX, or VoIP gateway to the Public Switched Telephone Network (PSTN) provided by a telephone company. An FXO port receives the telephone service, including the dial tone, battery power, and ringing voltage, from the telephone company’s telephone line.

Unlike an FXS port, an FXO port does not generate a dial tone. Instead, it receives the dial tone from the telephone service provider and uses it to make and receive external telephone calls. The FXO port acts as the connection between the organization’s telephone system and the outside telephone network.

When an employee makes an external call, the PBX routes the call through the FXO port, which sends it to the telephone company’s network. Similarly, when an outside caller dials the company’s telephone number, the call enters the PBX through the FXO port and is then routed to the appropriate extension.

For example, an office has an IP PBX, one BSNL telephone line, and 20 internal extensions. The BSNL telephone line is connected to the FXO port of the IP PBX. When an employee dials an external number, the call passes through the FXO port to the BSNL network. When a customer calls the company’s main number, the call first arrives at the FXO port, and the PBX transfers it to the required extension.

In simple terms, an FXO port connects the PBX to the outside telephone network (PSTN). It receives telephone service from the service provider, enabling users to make and receive external telephone calls.

What is SIP Protocol

SIP (Session Initiation Protocol) is a signaling protocol used to establish, manage, modify, and terminate voice, video, and multimedia communication sessions over IP networks such as the Internet or a Local Area Network (LAN). It is the most widely used protocol in VoIP (Voice over Internet Protocol) systems and is commonly used in IP PBX, IP phones, softphones, and SIP trunking.

SIP does not carry the voice itself. Instead, it is responsible for setting up and controlling the communication session between two or more devices. Once the session is established, the actual voice or video data is usually transmitted using the Real-time Transport Protocol (RTP).

In an IP PBX system, SIP allows IP phones and softphones to register with the PBX and communicate with each other. It also enables the IP PBX to connect with a SIP Trunk, allowing users to make and receive external telephone calls over the Internet instead of traditional analog telephone lines.

For example, a company has an IP PBX with 50 IP phones connected through a LAN. Each IP phone registers with the IP PBX using SIP. When an employee dials another extension, SIP establishes the call between the two phones. If the employee calls a customer outside the company, the IP PBX uses a SIP Trunk to route the call through the Internet to the telephone service provider.

Benefits of SIP Voice:

Lower Cost – No need for expensive phone lines; calls go over the internet.
Scalability – Add or remove lines (SIP trunks) easily.
Mobility – Employees can call from anywhere (softphones on mobile/laptop).
Advanced Features – Video calls, instant messaging, call analytics.
Unified Communications – Integrates voice, video, chat, and conferencing.
Disaster Recovery – Calls can automatically reroute if the main lie fails.

In Short:

SIP Voice means using the Session Initiation Protocol to make and manage voice calls over the internet (VoIP) instead of old-style phone lines.

What is Softphone?

A Softphone is a software application that allows users to make and receive telephone calls over the Internet using Voice over Internet Protocol (VoIP) instead of a traditional telephone. It performs the same functions as a physical IP phone but runs on devices such as computers, laptops, smartphones, and tablets.

A softphone connects to an IP PBX or SIP server using the Session Initiation Protocol (SIP). Once registered, users can make internal extension calls and external calls through a SIP trunk or VoIP service provider. Most softphones also support advanced features such as call transfer, call hold, call forwarding, conference calling, voicemail, caller ID, and instant messaging.

Softphones are widely used in businesses, call centers, customer support teams, and remote work environments because they eliminate the need for dedicated desk phones. Employees can use their office extension from anywhere with an internet connection, making communication more flexible and cost-effective.

For example, a company uses an IP PBX with 100 employees. Employees working in the office use IP phones, while employees working from home install a softphone application on their laptops or smartphones. After logging in with their SIP account, they can make and receive office calls using their office extension exactly as if they were in the office.

In Short:

A softphone is a software app that turns your computer or smartphone into a virtual phone for making VoIP/SIP calls — offering all the features of a desk phone, but over the internet.

How an IP PBX Connects to an Analog Phone

An IP PBX is designed to communicate using Internet Protocol (IP) and Voice over Internet Protocol (VoIP) technology. However, a traditional analog telephone cannot understand IP signals because it works only with analog voice signals. Therefore, a conversion device is required to connect an analog phone to an IP PBX.

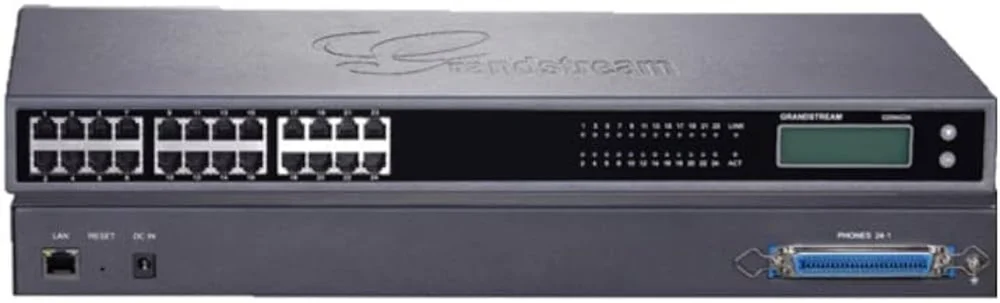

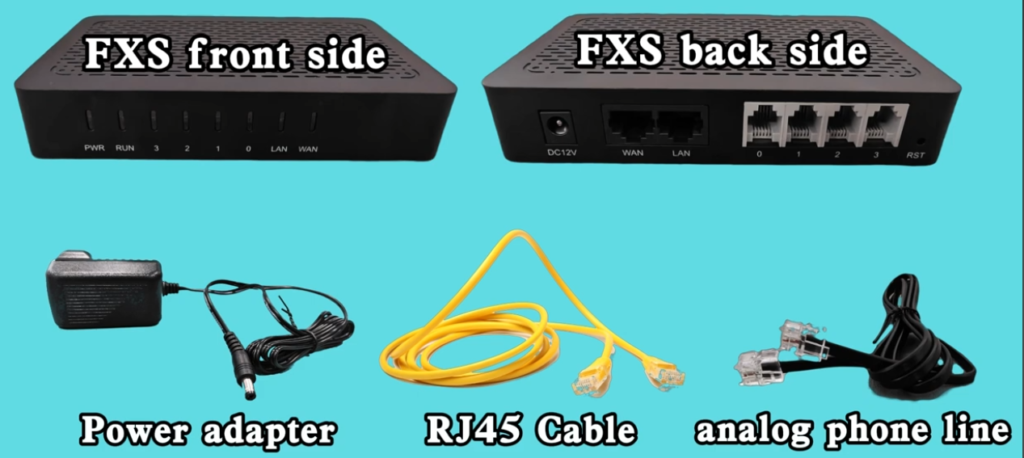

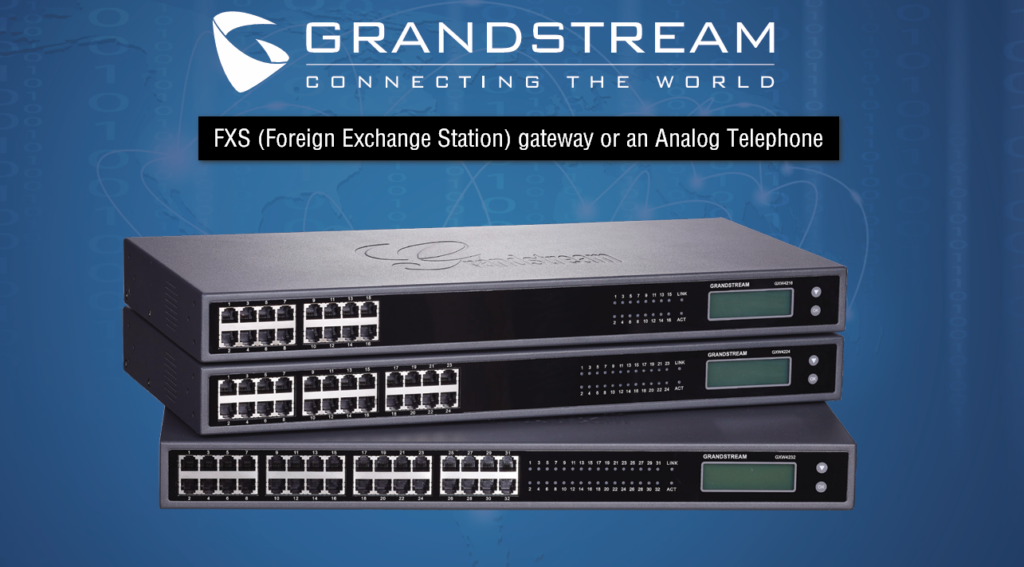

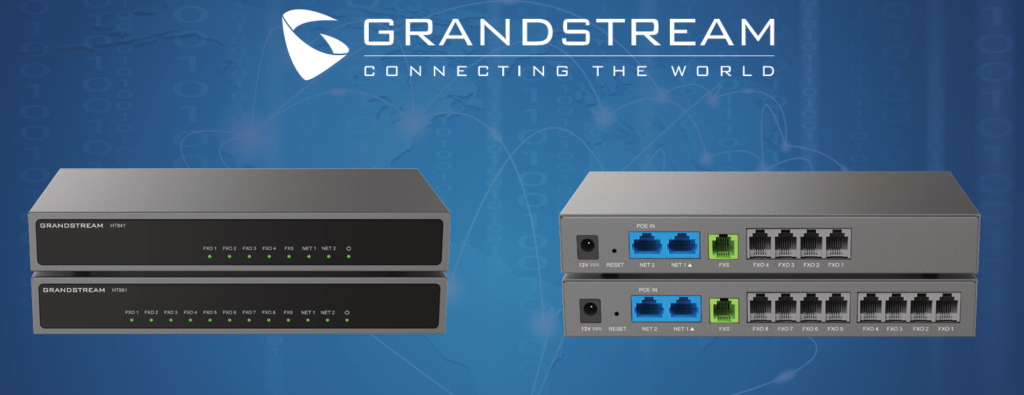

The conversion is performed by an FXS (Foreign Exchange Station) gateway or an Analog Telephone Adapter (ATA). This device converts the digital VoIP signals from the IP PBX into analog signals that a traditional telephone can understand. At the same time, it converts analog voice signals from the telephone back into digital VoIP packets for transmission through the IP network.

The analog telephone is connected to an FXS port on the gateway or ATA using a standard RJ-11 telephone cable. The gateway or ATA is then connected to the office Local Area Network (LAN), where it communicates with the IP PBX using the Session Initiation Protocol (SIP).

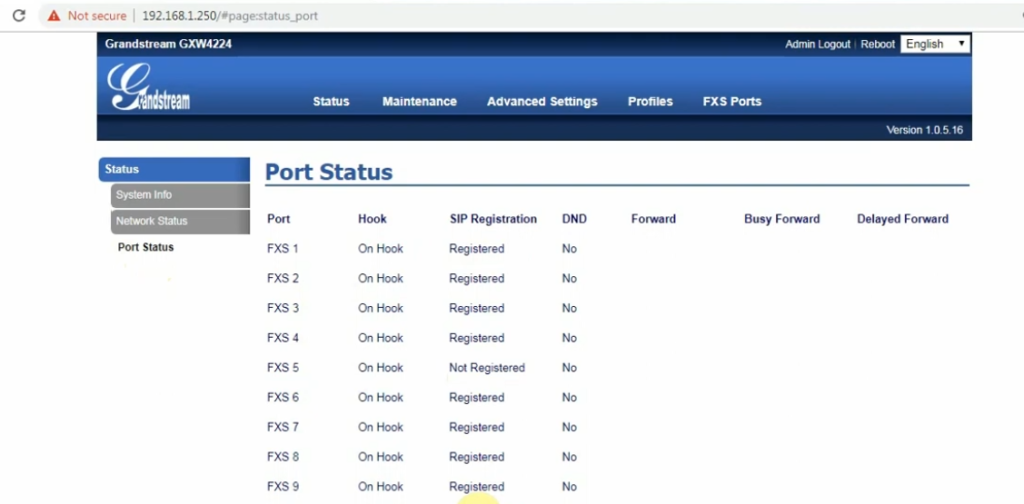

When the gateway starts, it registers each FXS port as an extension with the IP PBX. For example, the IP PBX may assign Extension 101 to the analog telephone connected to FXS Port 1. From that point onward, the analog phone functions like any other extension in the IP PBX system.

When a user picks up the analog telephone handset, the FXS port provides a dial tone. As the user dials a number, the gateway sends the dialing information to the IP PBX using SIP. The IP PBX processes the call and routes it either to another internal extension or to an external telephone line through a SIP trunk or FXO gateway.

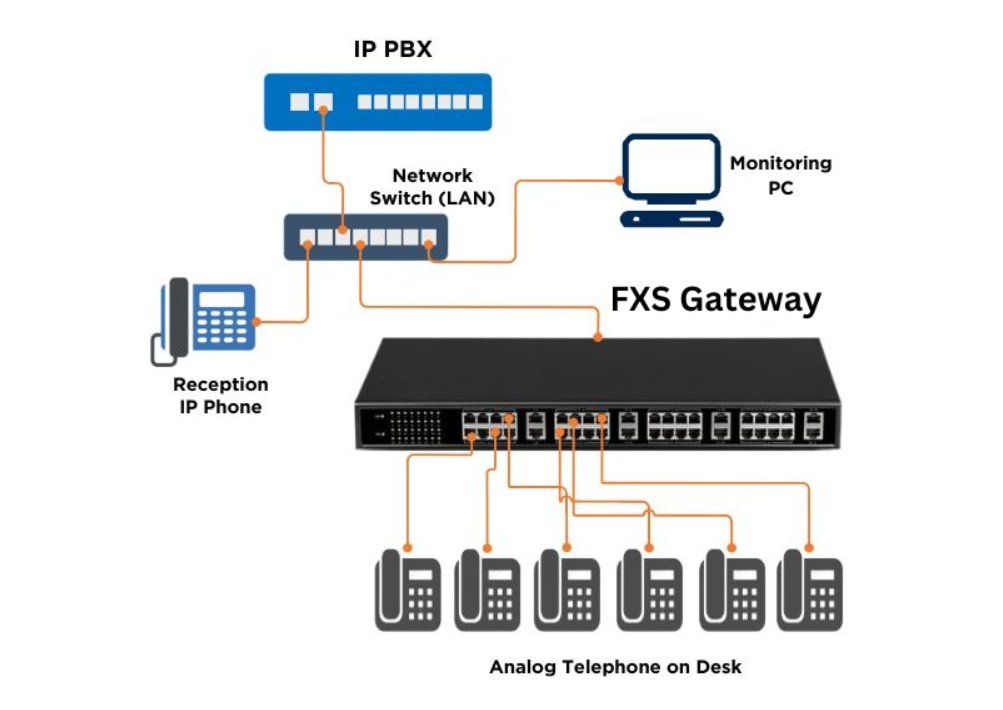

For example, a company has an IP PBX, a 24-port FXS gateway, and 20 analog telephones. Each telephone is connected to an FXS port on the gateway. The gateway registers all 20 extensions with the IP PBX. Employees can make internal calls using extension numbers and external calls through the IP PBX, even though they are using traditional analog telephones.

In this way, an FXS gateway or ATA acts as a bridge between the analog telephone and the IP PBX, allowing organizations to continue using their existing analog telephones while benefiting from modern VoIP communication technology.

What is a Multiplexer?

A Multiplexer (MUX) is a communication device that combines multiple input signals into a single transmission channel. It allows several data, voice, or video signals to share one communication link, reducing the number of cables and transmission costs. At the receiving end, a Demultiplexer (DEMUX) separates the combined signals back into their original form.

A multiplexer works by selecting one of several input signals at a time and transmitting it over a single communication line. This makes efficient use of available bandwidth and is widely used in telecommunication networks, computer networks, fiber optic communication, and digital communication systems.

In telephone systems, a multiplexer allows multiple voice channels to be transmitted over a single communication link instead of using separate cables for each telephone line. Similarly, in computer networks, it enables multiple data streams to travel over one network connection, improving efficiency and reducing infrastructure costs.

For example, a company has eight branch offices, each requiring a separate telephone connection to the headquarters. Instead of installing eight individual communication lines, a multiplexer combines all eight voice channels into a single fiber optic cable. At the headquarters, a demultiplexer separates the signals, allowing each branch office to communicate independently.

Multiplexers are commonly used in fiber optic networks, telephone exchanges, satellite communication, cable television, radio communication, and data centers where multiple signals need to be transmitted efficiently over a single medium.

Types of Multiplexing:

Time Division Multiplexing (TDM): Multiple signals share the same communication channel by taking turns in different time slots.
Frequency Division Multiplexing (FDM): Multiple signals are transmitted simultaneously using different frequency bands.
Wavelength Division Multiplexing (WDM): Used in fiber optic communication, where different light wavelengths carry multiple signals over a single optical fiber.
Code Division Multiplexing (CDM/CDMA): Multiple signals share the same frequency by using unique codes to separate them.

In Simple Terms

A Multiplexer (MUX) is like a traffic controller that combines many communication signals into one cable, while a Demultiplexer (DEMUX) separates them again at the destination. This saves bandwidth, reduces cabling costs, and makes communication systems more efficient.

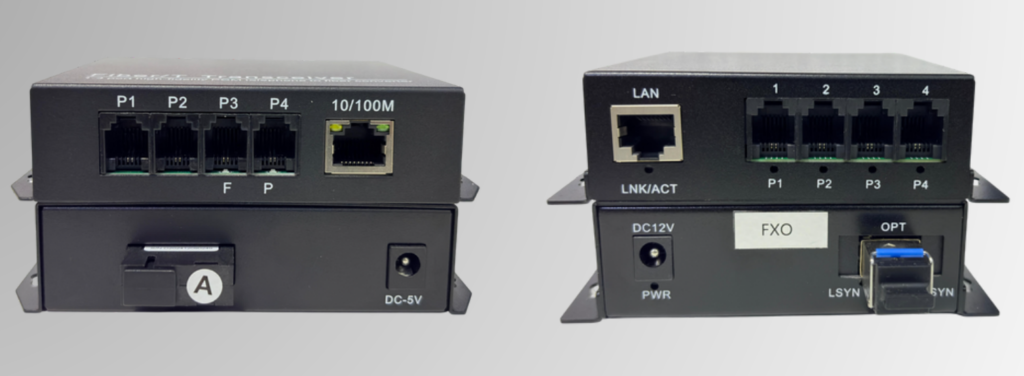

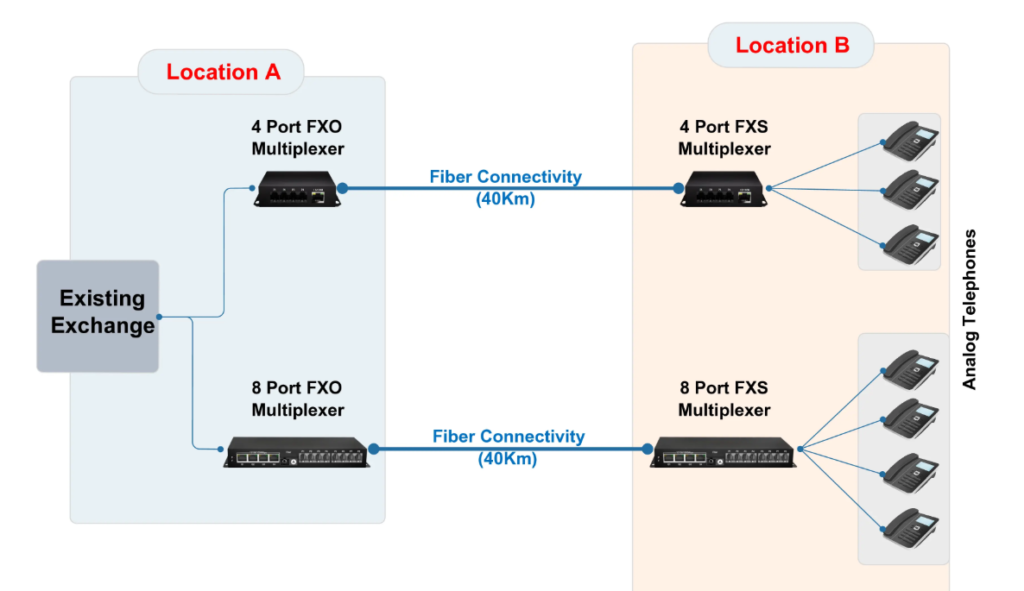

Analog Telephone (FXS) over Fiber

Analog Telephone over Fiber is a communication solution that allows an analog telephone signal (FXS) to be transmitted over a fiber optic cable instead of a traditional copper telephone cable. This is useful when the distance between the PBX and the telephone is too long for copper cabling.

The analog telephone is connected to the FXS port of an EPABX, IP PBX, or FXS gateway. The analog voice signal is then connected to an Analog-over-Fiber converter (also called a Voice Fiber Multiplexer or FXS Fiber Extender). This device converts the analog electrical signal into an optical signal that travels through a fiber optic cable.

At the remote location, another fiber converter receives the optical signal and converts it back into an analog telephone signal. The analog telephone then works exactly as if it were directly connected to the PBX.


					Analog Phone
      │
   RJ-11 Cable
      │
   FXS Port
      │
+------------------+
| FXS Fiber Unit A |
+------------------+
      │
   Fiber Optic Cable
      │
+------------------+
| FXS Fiber Unit B |
+------------------+
      │
   RJ-11 Cable
      │
EPABX / IP PBX / FXS Gateway

Real Example:

A factory has its main EPABX in the administration building, but the security gate is 2 km away. Running an analog telephone cable over this distance would result in signal loss and poor voice quality.

Instead, the company installs:

An FXS Fiber Converter near the EPABX.
Another FXS Fiber Converter at the security gate.
A single fiber optic cable between the two locations.

The security guard can use the analog telephone normally to call office extensions or receive incoming calls, even though the phone is located 2 km away.

Advantages

Supports long-distance communication (up to several kilometers, depending on the equipment).
Provides clear voice quality without signal degradation.
Immune to electrical interference (EMI/RFI) and lightning.
Uses lightweight, high-bandwidth fiber optic cable.
Suitable for factories, hospitals, campuses, hotels, railways, airports, and industrial sites.

Note:

If the telephone is analog, you use an FXS over Fiber solution.

If the telephone is an IP phone, you do not need FXS over fiber. You simply connect the IP phone to the network through a fiber switch or media converter, because IP phones already communicate over Ethernet/IP.

furniture

lightings

accessories

Texture lab

what’s new

what’s new

Flash sales

Flash sales

PBX & EAPBX System

Table of Contents

History of the Intercom System

Real-Life Examples of Intercom Systems

Types of Intercom Systems

Benefits of an Intercom System in Organizations, Schools, Colleges, and Hospitals

Deployment Locations of an Intercom System

History of the Telephony System

What is an Automatic Telephone Exchange?

Automatic Telephone Exchange Inventor Details

Manually by Operators

Automatic Telephone Exchange

What is a Telephony System?

Why Do Schools, Hospitals, Offices, and Organizations Need a Telephony System?

RealLife Examples of Telephony System Usage

Problems Without a Telephony System?

What is PBX System?

What is EPABX System?

Key Features of EPABX:

Difference Between PBX and EPABX System?

Types of PBX Systems?

1. Analog PBX:

2. Digital PBX:

3. IP PBX (Internet Protocol PBX):

Grandstream GHP63x Series Hotel IP Phones

Hotel-Oriented Design:

Customizable Service Keys:

Color LCD Display:

Built-in Wi-Fi 6 (W Models):

USB Type-C Charging Port:

HD Voice Quality:

GDMS Cloud Management:

Flexible Installation:

Enterprise-Level Security:

Multiple SIP Accounts:

Summary:

4. Hosted PBX (Cloud PBX):

5. Hybrid PBX:

5. Software-Based PBX:

Real Example:

Popular Software-Based PBX Solutions:

Summary:

What is Software UCM?

What is Grandstream Device Management System (GDMS)

What is Grandstream Device Management System (GDMS):

How Does GDMS Work?

Devices Supported by GDMS:

Key Features of GDMS:

Benefits of GDMS:

Real-World Example:

Benefits:

Why Organizations Use GDMS:

Summary:

Why Businesses Need a PBX System?

Reasons Why Businesses Need a PBX:

Example : Office

Company operates without a PBX?

Problems Without a PBX:

Real Example: Company Operating Without a PBX:

Benefits of IP PBX over Analog PBX

Analog PBX:

IP PBX:

1. Lower Communication Cost:

2. Better Voice Quality:

3. Easy Installation and Scalability:

4. Remote Access and Mobility:

5. Advanced Communication Features:

6. Easy Integration with Business Applications:

7. Lower Maintenance and Future Expansion:

Conclusion:

Difference Between IP PBX and Analog PBX

What is FXS (Foreign Exchange Station)?
